CFD Thermal Analysis: 240kW EV Charger

An advanced Computational Fluid Dynamics (CFD) thermal analysis and cooling system validation designed to visualize heat dissipation, analyze airflow vectors, and ensure the optimal performance of a high-power EV charger enclosure.

240kW DC Fast Charger
CFD Thermal Validation
100% Cooling Efficiency

The Impact

Ensuring Product Reliability

100%

Design Validation

240kW

High-Power Handling

Optimal

Fan Distribution

Zero

Overheating Risk

Visual Showcase

Engineering Data & Heat Maps

The Challenge

The primary challenge was to accurately predict and manage the intense heat generated by a massive 240 kW DC EV charger. We needed to perform an advanced Computational Fluid Dynamics (CFD) thermal analysis to visualize internal heat dissipation and complex airflow vector fields. The goal was to rigorously validate the cooling strategy, identify potential thermal hot spots, and ensure the internal electronic power modules would maintain optimal performance without any risk of overheating.

The Solution

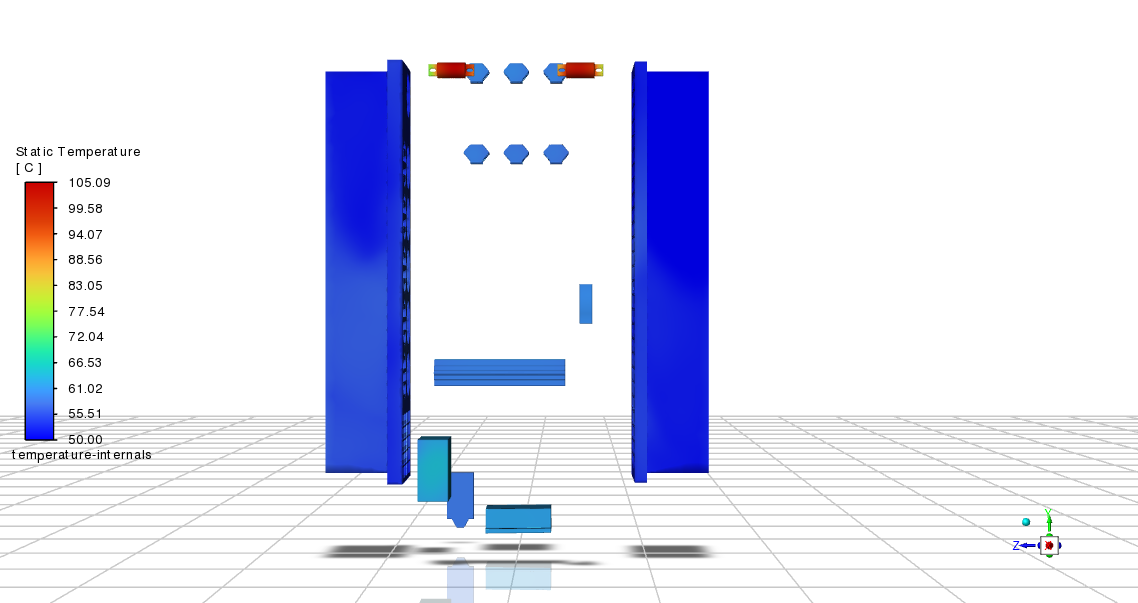

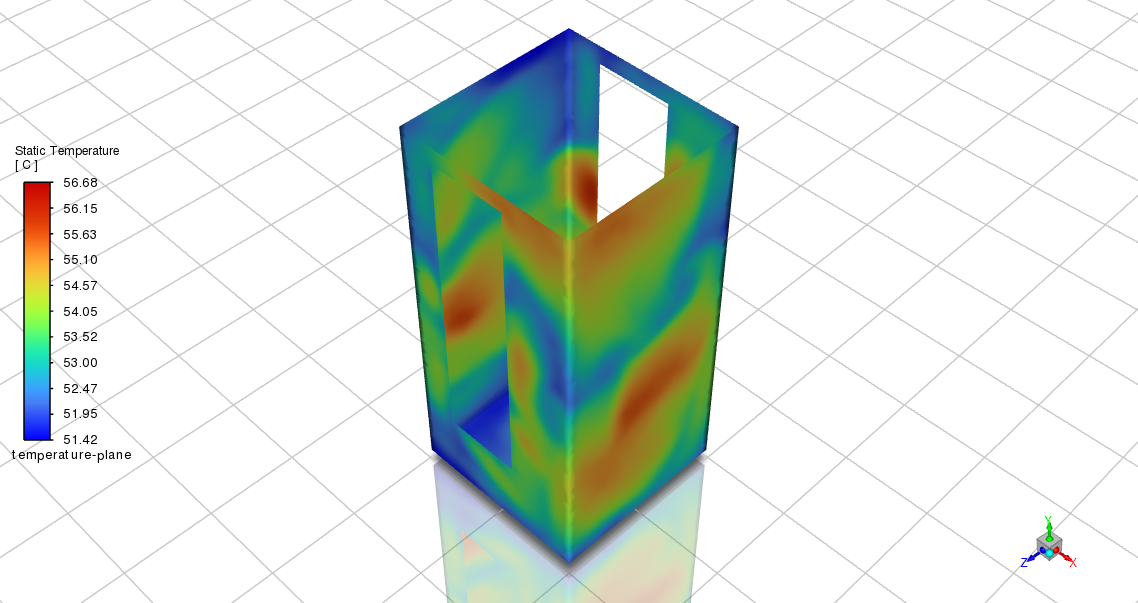

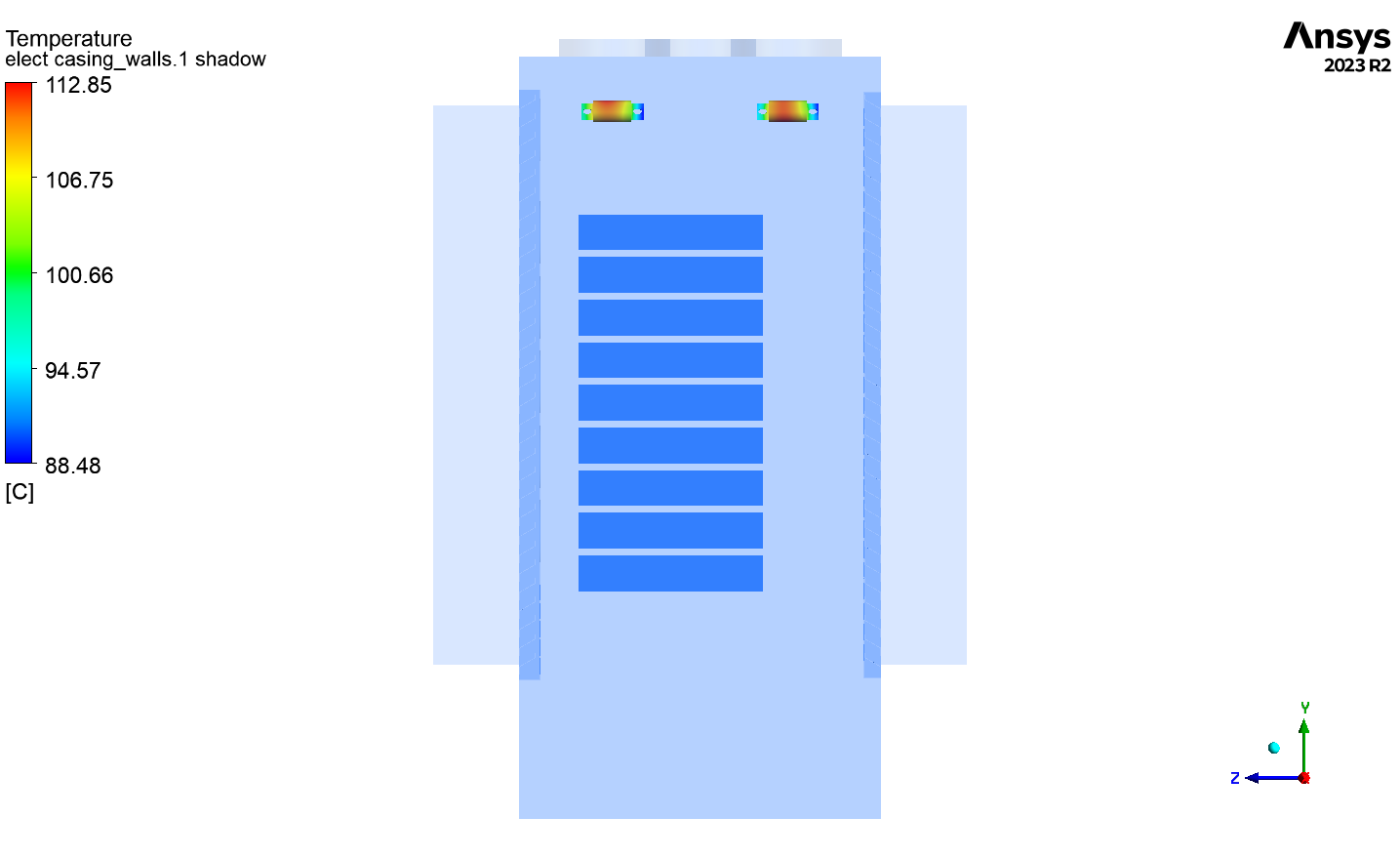

Advanced CFD & Heat Mapping

Accurate 3D CAD & Meshing

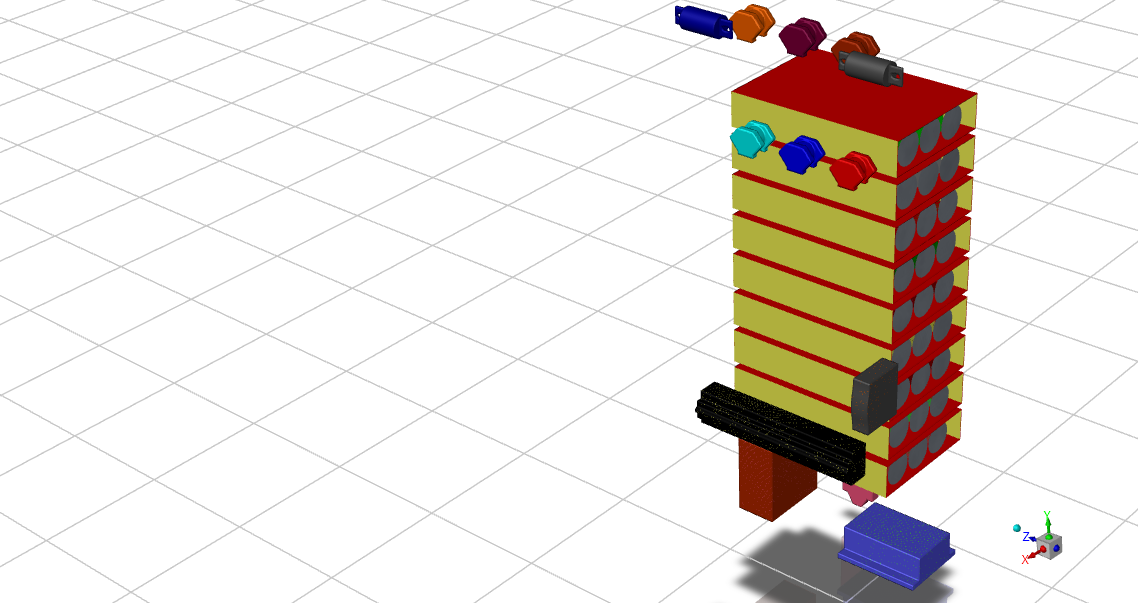

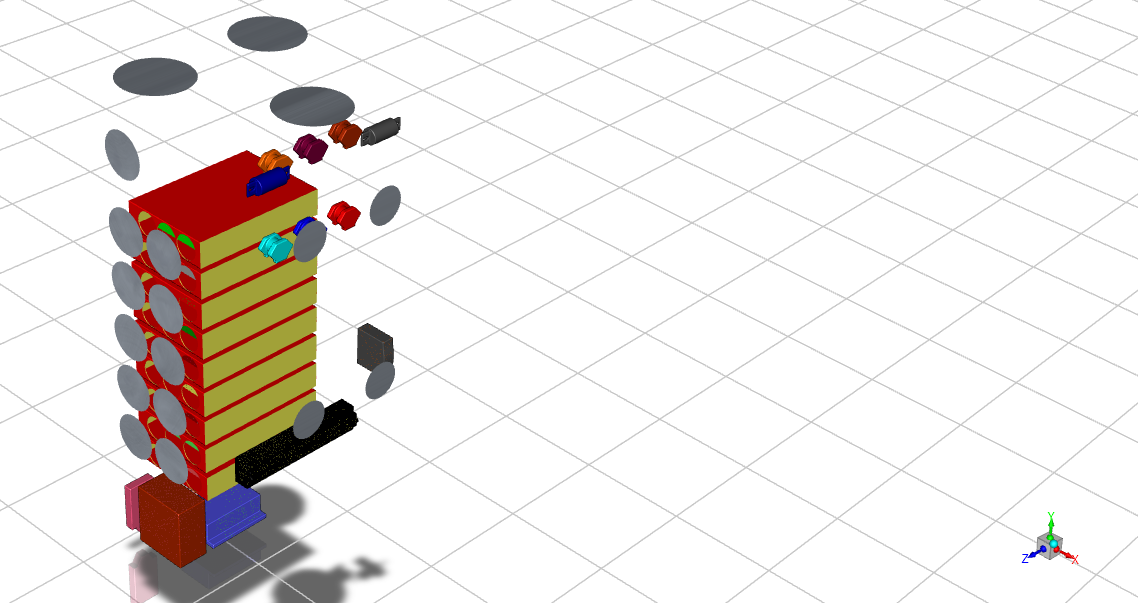

Precise 3D visualization, setup, and meshing of the EV charger enclosure and internal components, based entirely on strict engineering reference materials.

Airflow Vector Simulation

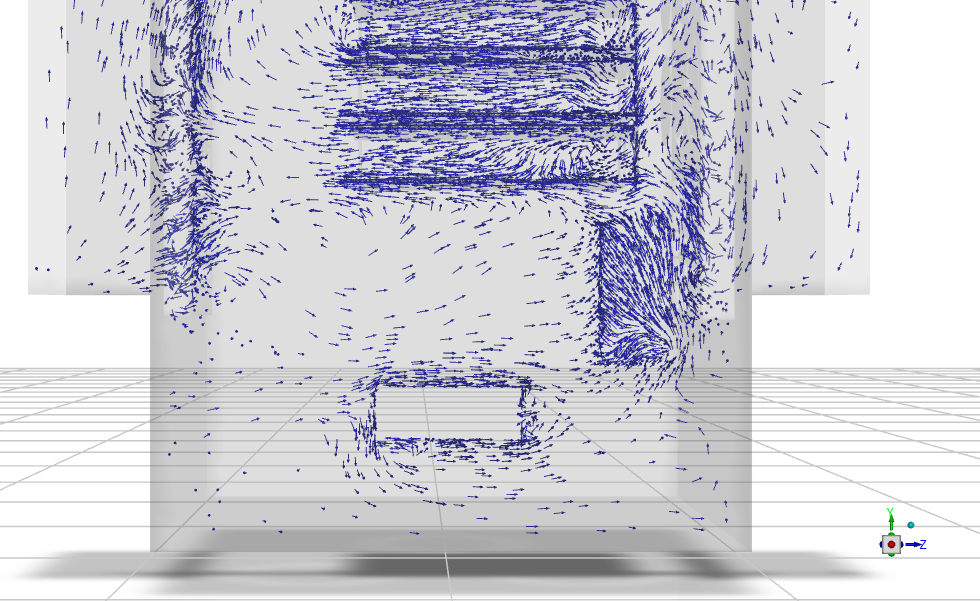

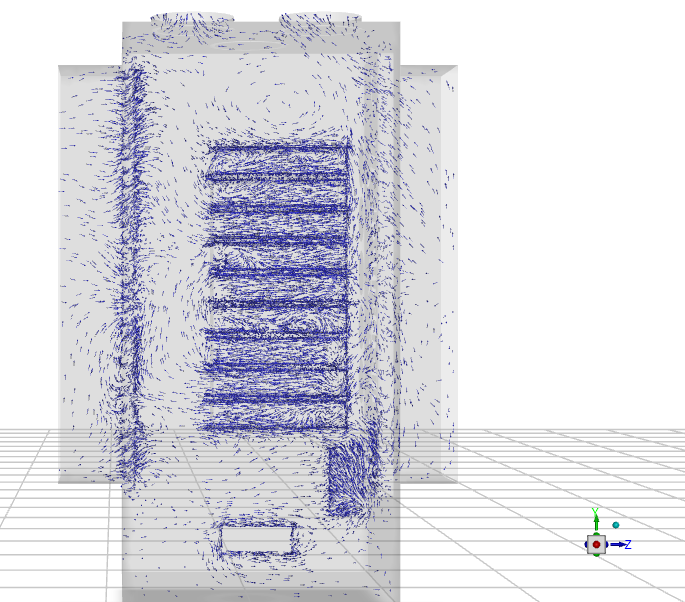

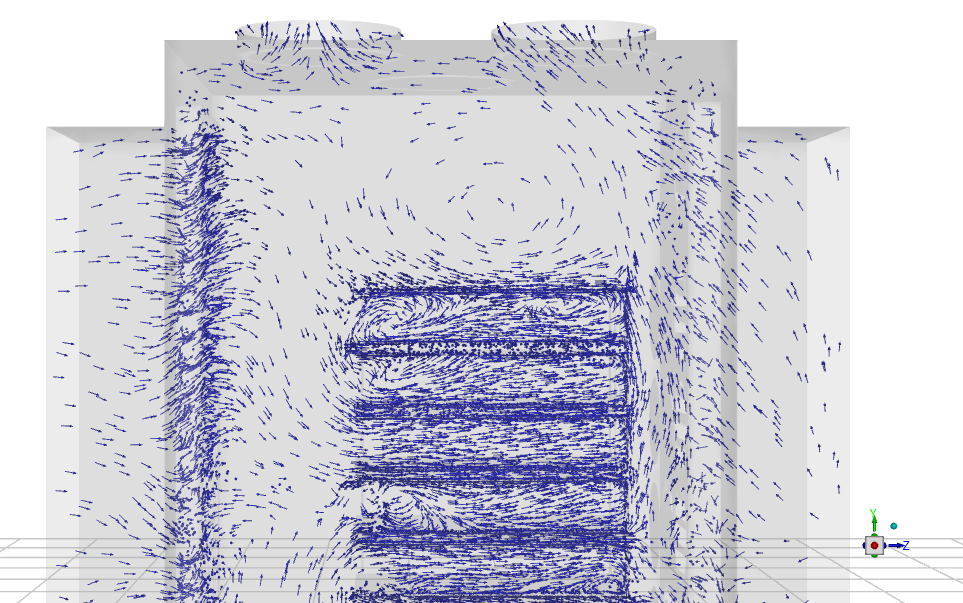

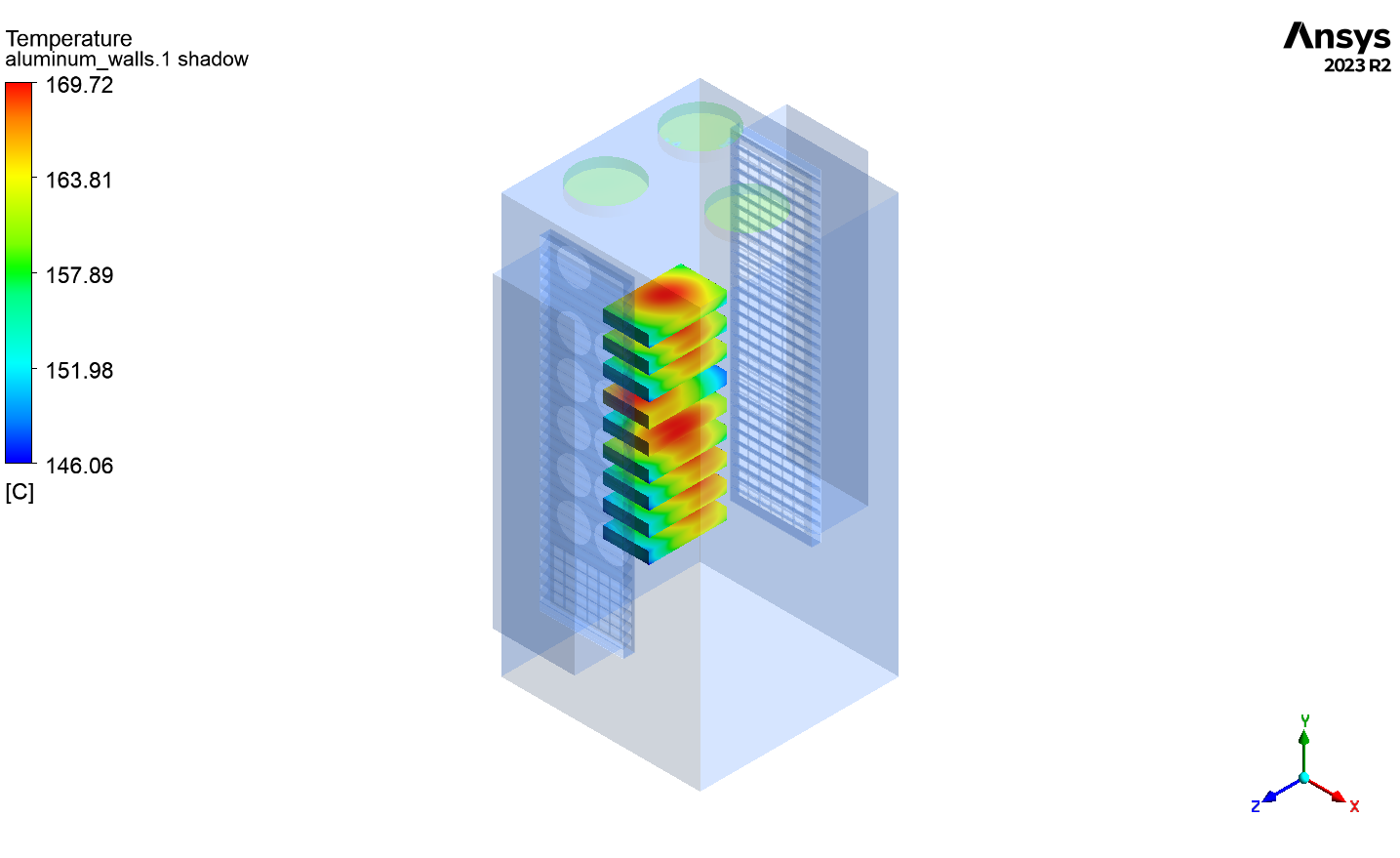

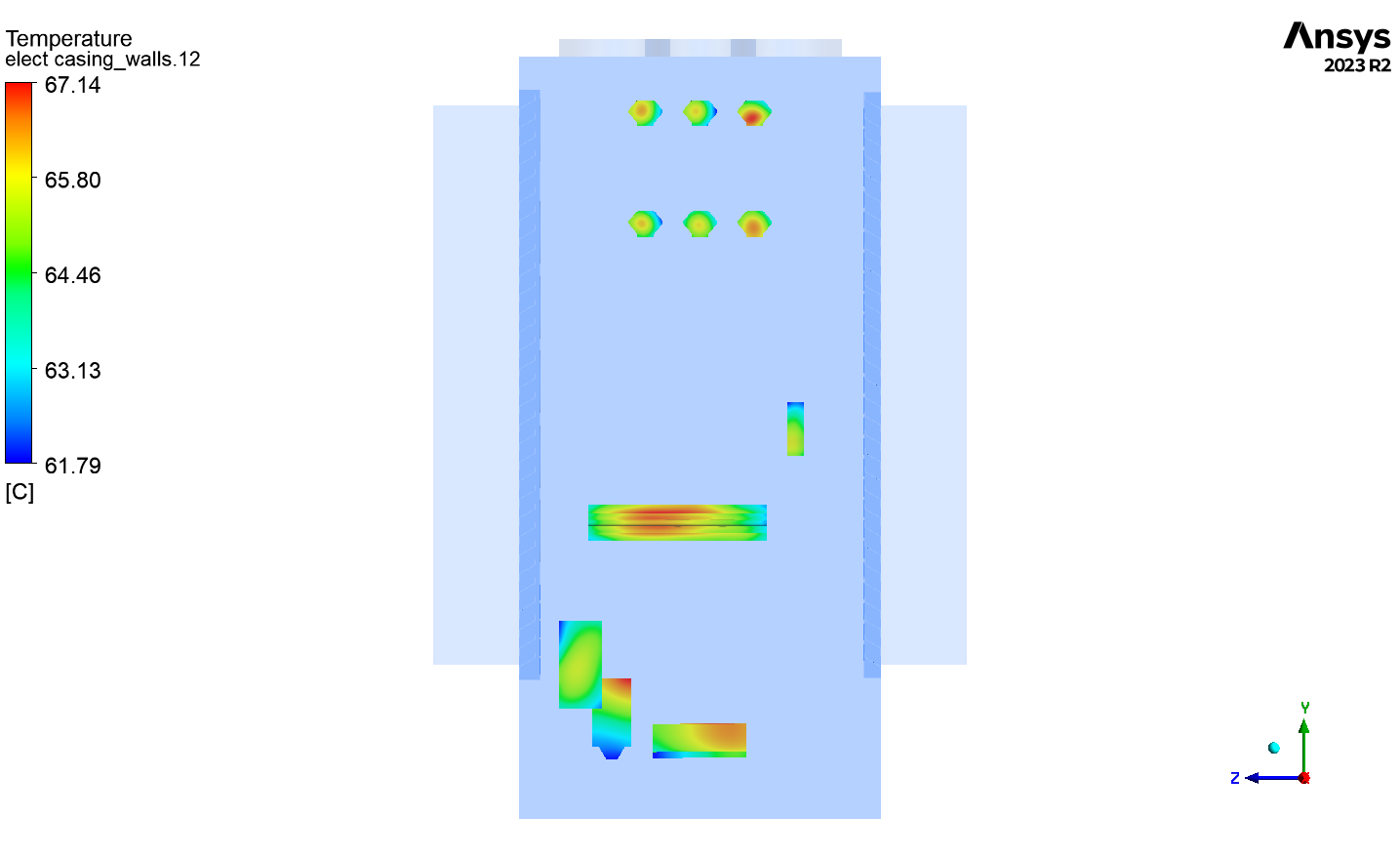

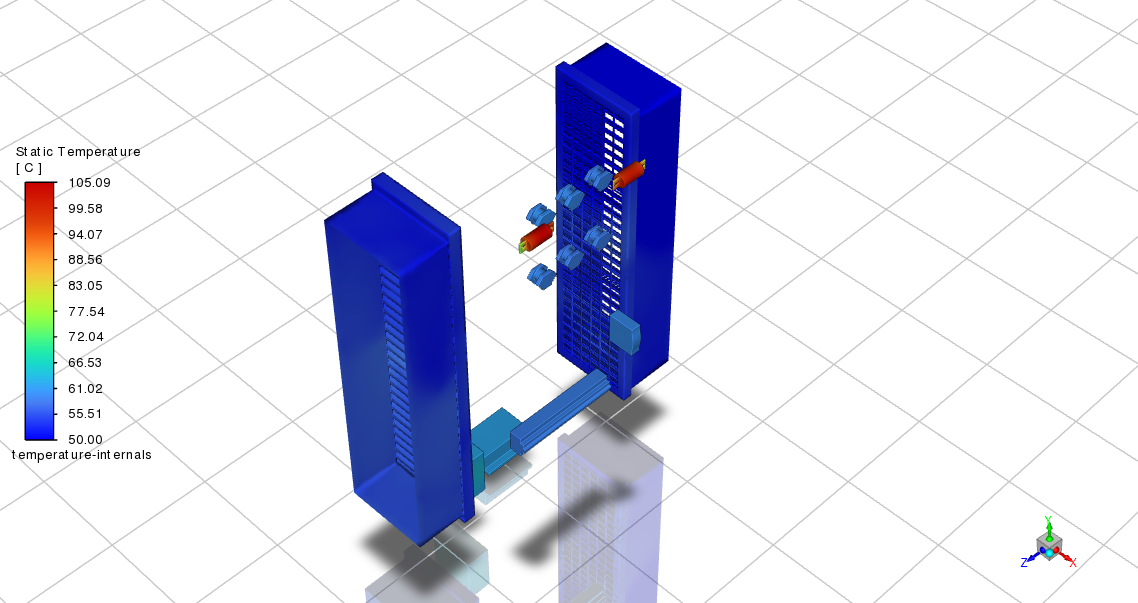

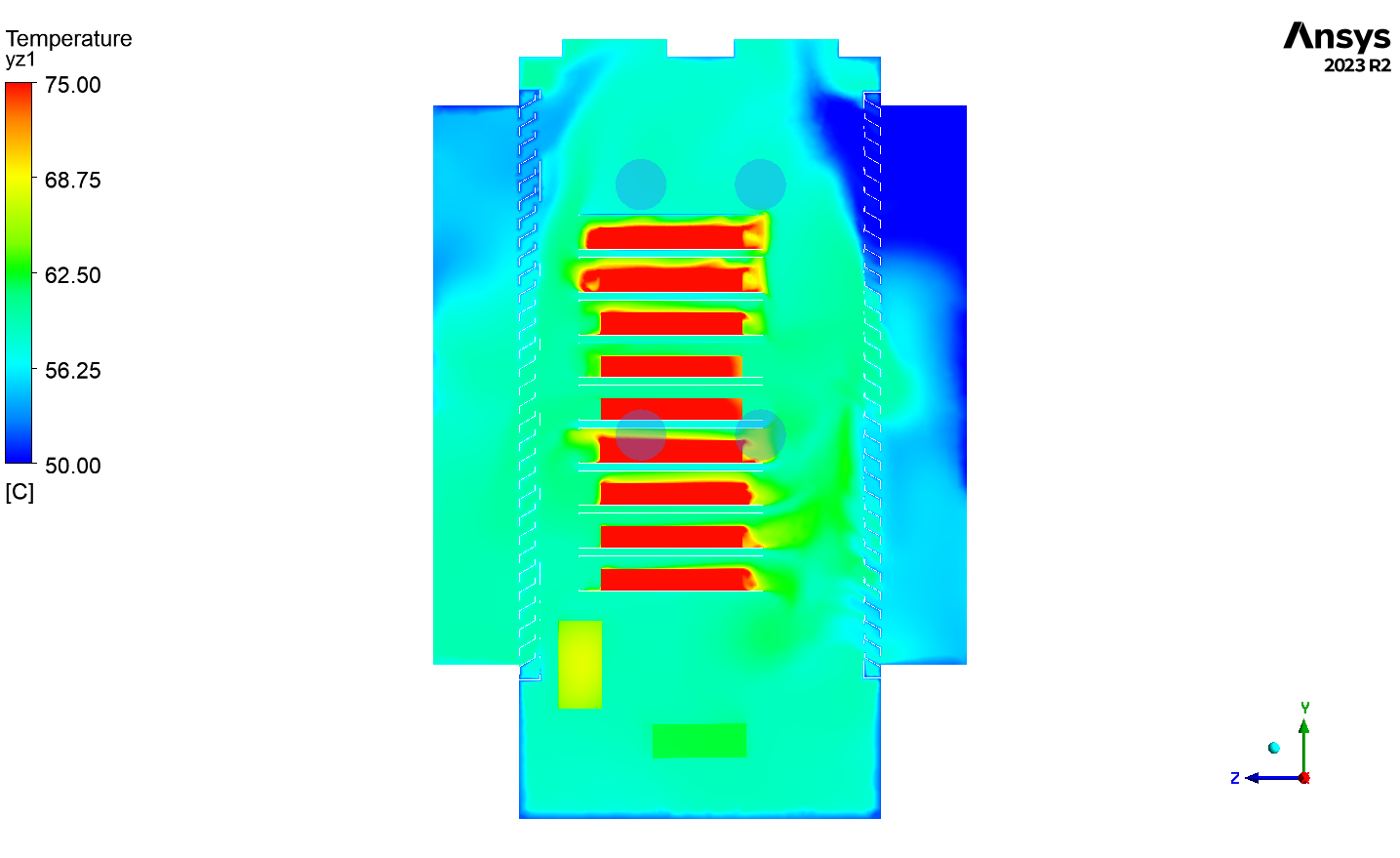

Technical CFD simulations demonstrating exact airflow patterns, dynamic vector fields, and thermal gradients across high-stress internal power modules.

Thermal Optimization

Step-by-step analysis of fan distribution and component placement to maximize heat dissipation and visually validate the cooling system's efficiency.

Outcome

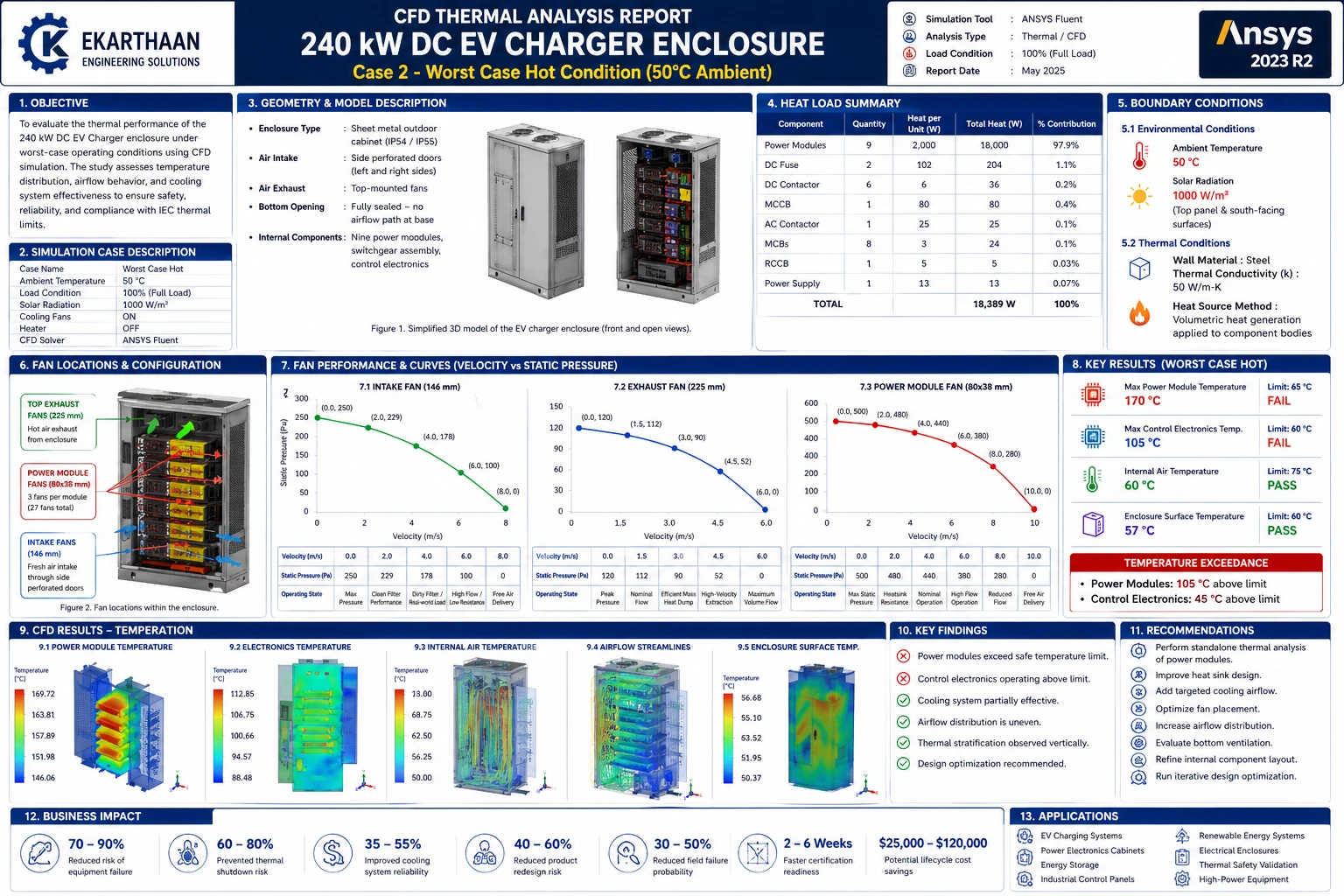

The final CFD thermal analysis effectively illustrated the precise thermal behavior and cooling efficiency of the 240 kW EV charger. By providing highly accurate visualizations, heat maps, and comprehensive data reports, we enabled the client to clearly validate their design, optimize internal fan placement, and ensure long-term product reliability for critical engineering review.

Analysis

Technical Breakdown

Validating the Cooling Strategy

Executing this advanced simulation required deep technical expertise in thermodynamics and fluid mechanics. We focused heavily on mapping the exact airflow vectors and identifying thermal hotspots to ensure the cooling system design could withstand the massive heat output of a 240 kW power load.

  • Detailed 3D CAD setup and advanced meshing tailored specifically for complex electronics enclosures.
  • Computational Fluid Dynamics (CFD) simulations tracking airflow behavior and thermal distribution.
  • Strategic analysis of fan distribution to optimize cooling paths and mitigate extreme thermal hotspots.
  • Comprehensive visual reporting and heat map rendering formatted specifically for engineering validation.
