Modal Analysis: Steel Structures

A comprehensive modal and vibration analysis evaluating the dynamic performance and structural stability of custom steel frame assemblies using advanced FEA techniques to ensure long-term safety and reliability.

86% Resonance Failure Prevention
4X Lifecycle Performance
FEA Advanced Simulation

The Impact

Mitigating Risk & Ensuring Reliability

48%

Reduced Structural Risk

86%

Prevented Vibration Failures

33%

Saved on Physical Testing

91%

Confident Design Approval

Visual Showcase

FEA Data & Structural Heat Maps

The Challenge

The client needed to ensure their structural assembly would remain completely stable and safe when exposed to real-world operational loads and environmental forces. However, the natural vibration behavior of the structure was entirely unknown. Because physical testing is highly expensive and time-consuming, there was a significant risk of resonance or excessive movement. They required rigorous mechanical design validation before manufacturing to avoid structural damage caused by operating frequencies matching the system's natural frequency.

The Solution

Digital Engineering & Dynamic Modeling

High-Accuracy 3D Modeling

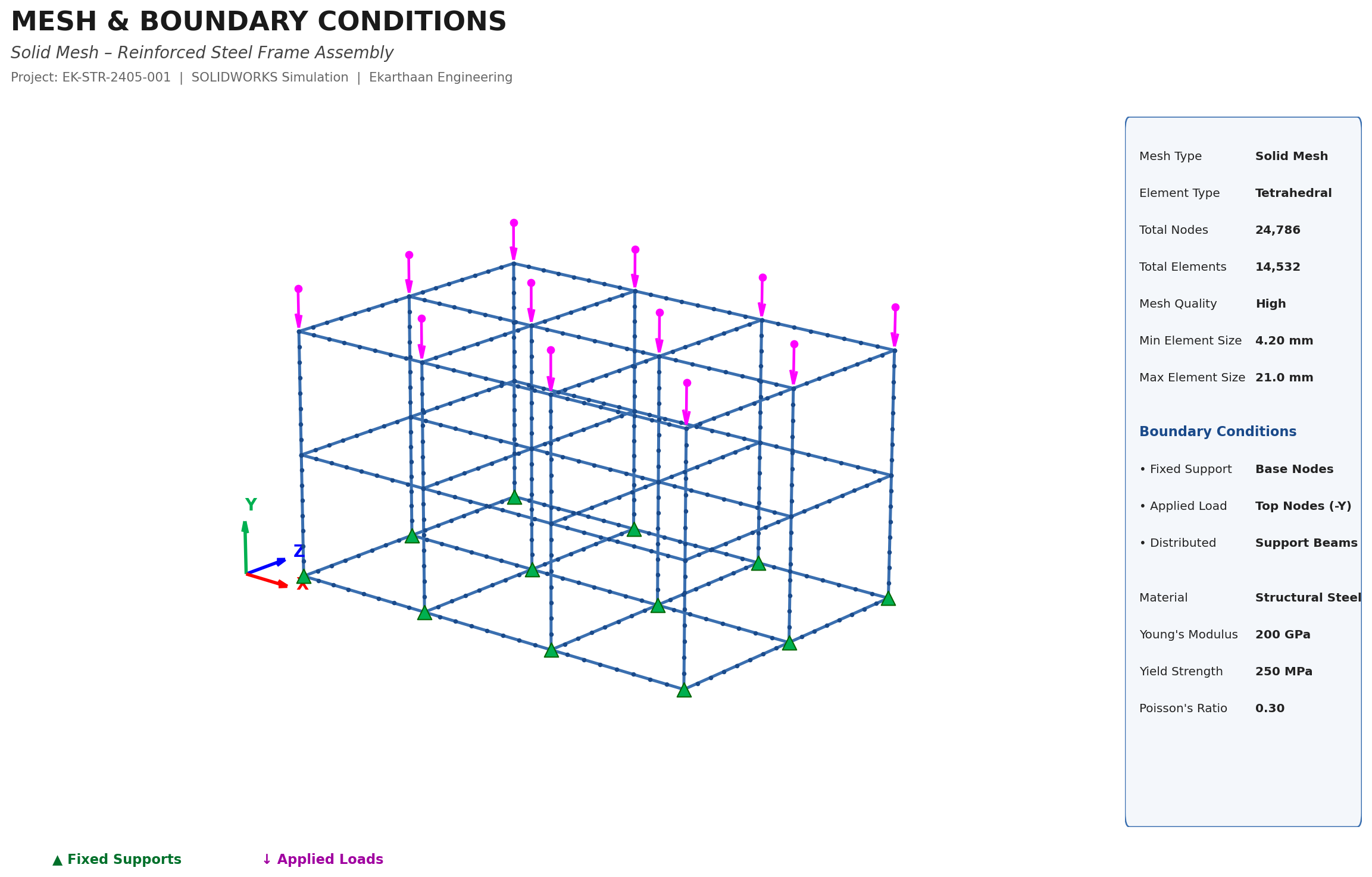

Built a high-accuracy 3D simulation model of the steel structure to precisely map mesh boundaries and establish physical engineering parameters.

Modal & Vibration Analysis

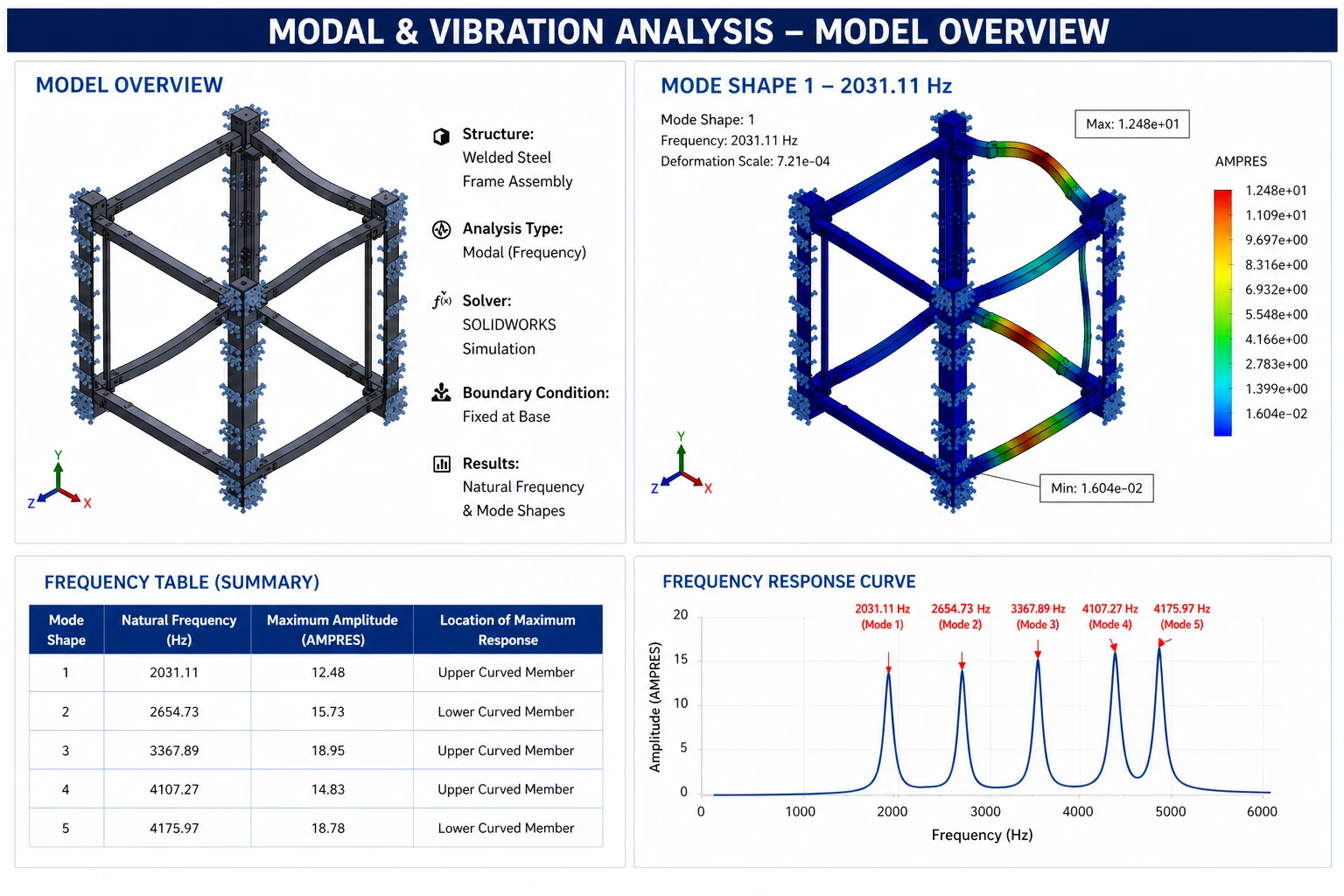

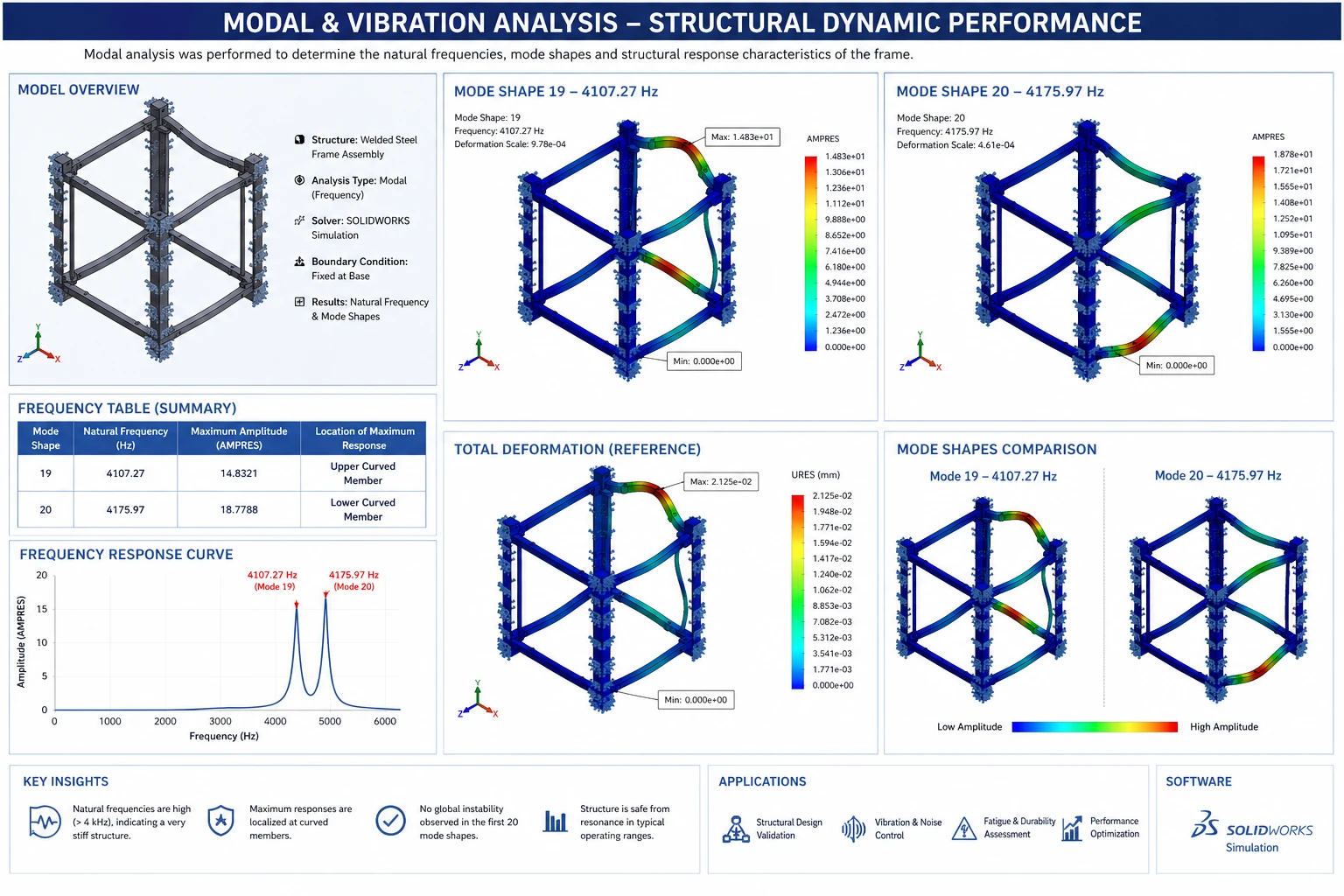

Performed advanced Finite Element Analysis (FEA) to determine natural frequencies, mode shapes, and identify critical vibration zones.

Structural Stiffness Evaluation

Evaluated structural stiffness and stability under dynamic conditions, providing actionable engineering insights to optimize the final design.

Outcome

The advanced modal and vibration analysis enabled the client to confidently validate their design, drastically reducing the risk of resonance-related failures. By simulating real-world dynamic behavior digitally, we eliminated the need for costly trial-and-error physical testing and delivered a validated, data-driven, production-ready structural solution that ensures safe, efficient, and scalable system performance.

Analysis

Technical Breakdown

Finite Element Analysis (FEA) Validation

Executing this advanced structural simulation required deep technical expertise in mechanical vibration and structural dynamics modeling. We focused heavily on identifying harmonic responses and deformation patterns to optimize structural stiffness and confirm the absolute Factor of Safety (FOS) before deployment.

  • Built high-accuracy 3D structural models reflecting real-world dynamic loading conditions and boundary meshes.
  • Executed modal frequency and harmonic response analysis to identify and mitigate critical resonance risks.

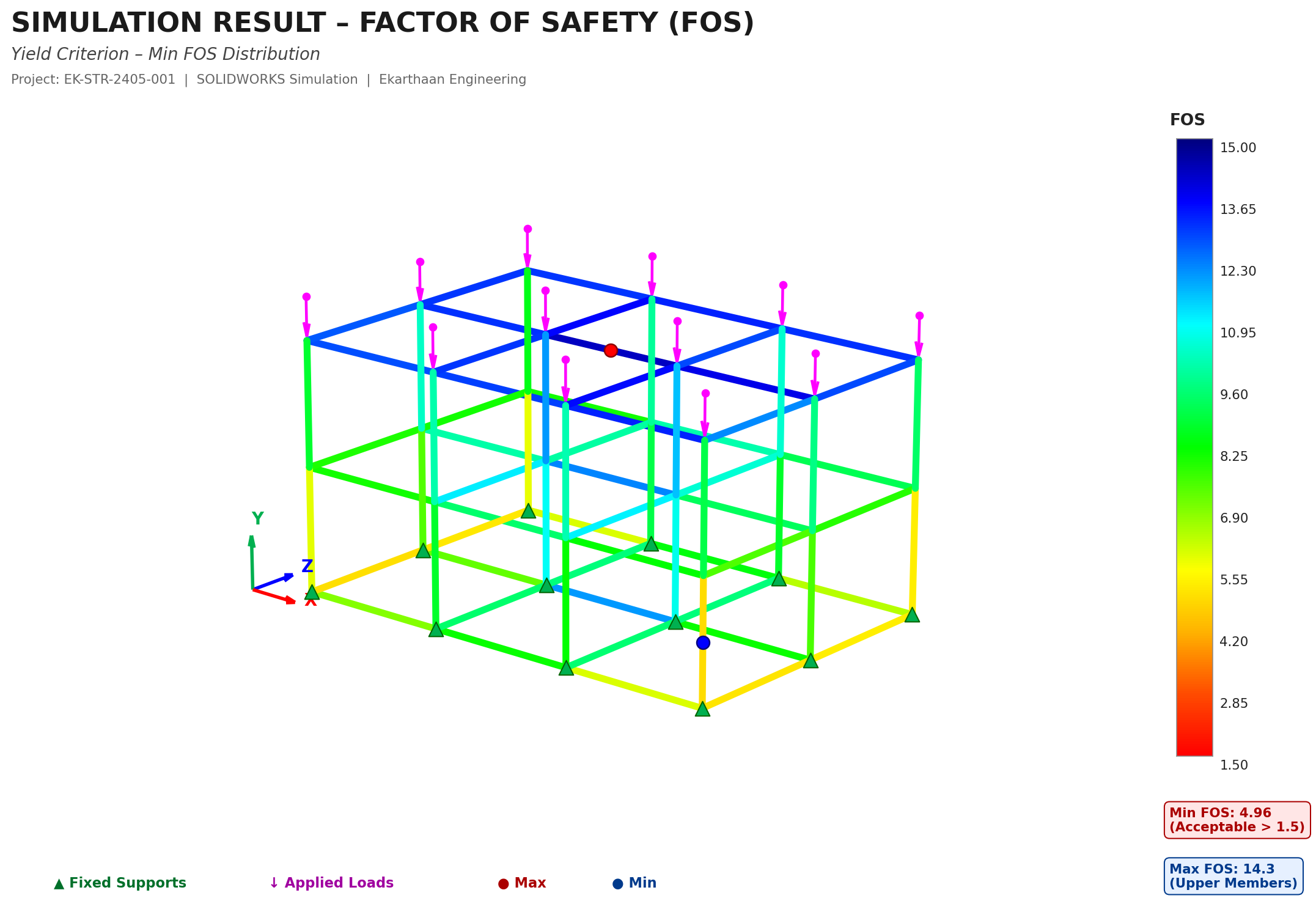

  • Generated comprehensive Factor of Safety (FOS) and deformation pattern heat maps for clear engineering review.
  • Delivered precise structural design optimizations to ensure maximum product reliability and safe deployment.
