CFD Flow Optimization: Duct Systems

An advanced Computational Fluid Dynamics (CFD) evaluation of guide vanes designed to suppress flow separation, improve velocity distribution, and optimize aerodynamic efficiency in retrofit HVAC duct systems.

25% Max Reduced Flow Losses
ANSYS CFD Simulation
6 Complex Systems Analyzed

The Impact

Enhancing HVAC System Efficiency

25%

Reduced Flow Losses (Up to)

30%

Reduced Turbulence & Noise

20%

Improved System Efficiency

25%

Extended Equipment Life

Visual Showcase

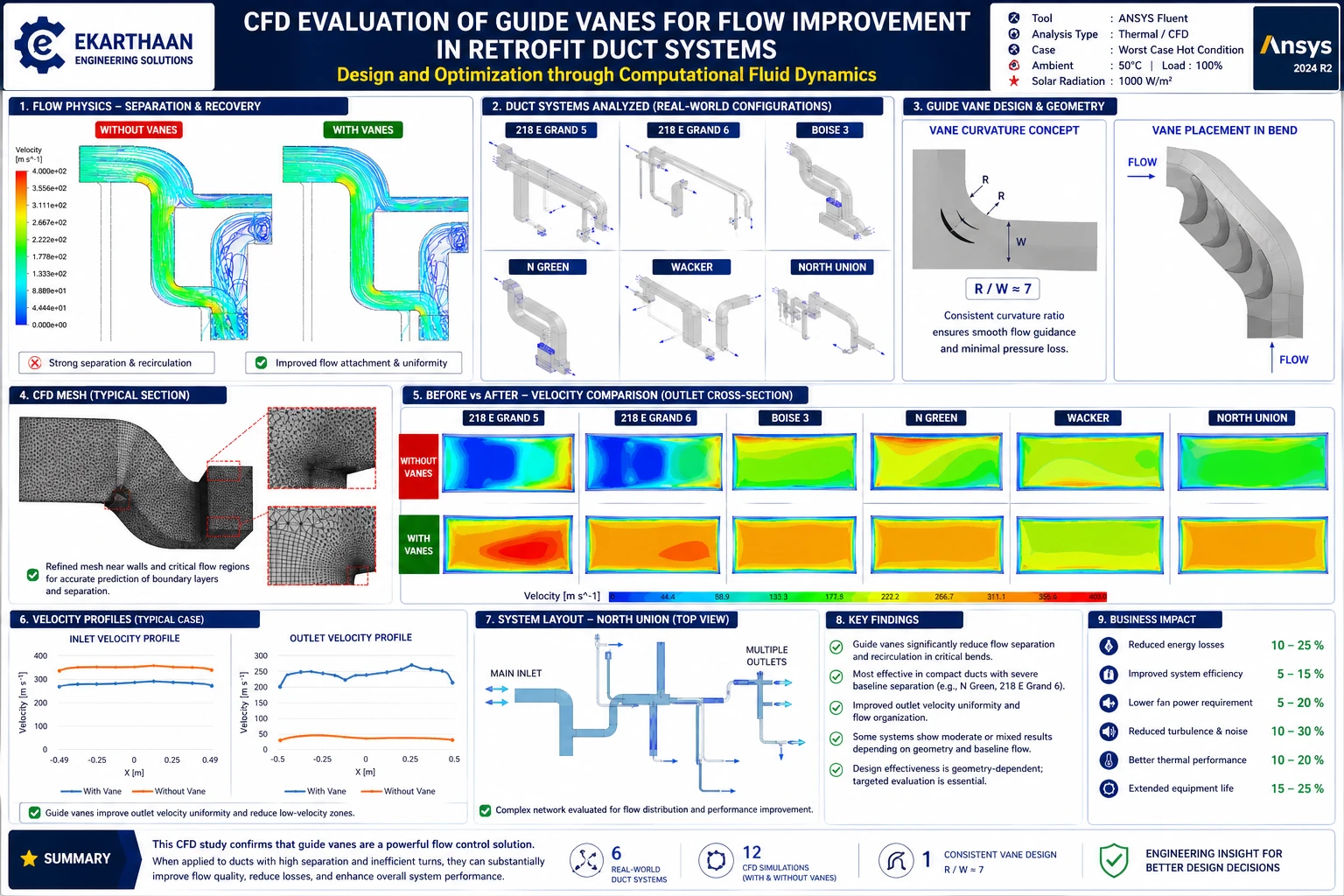

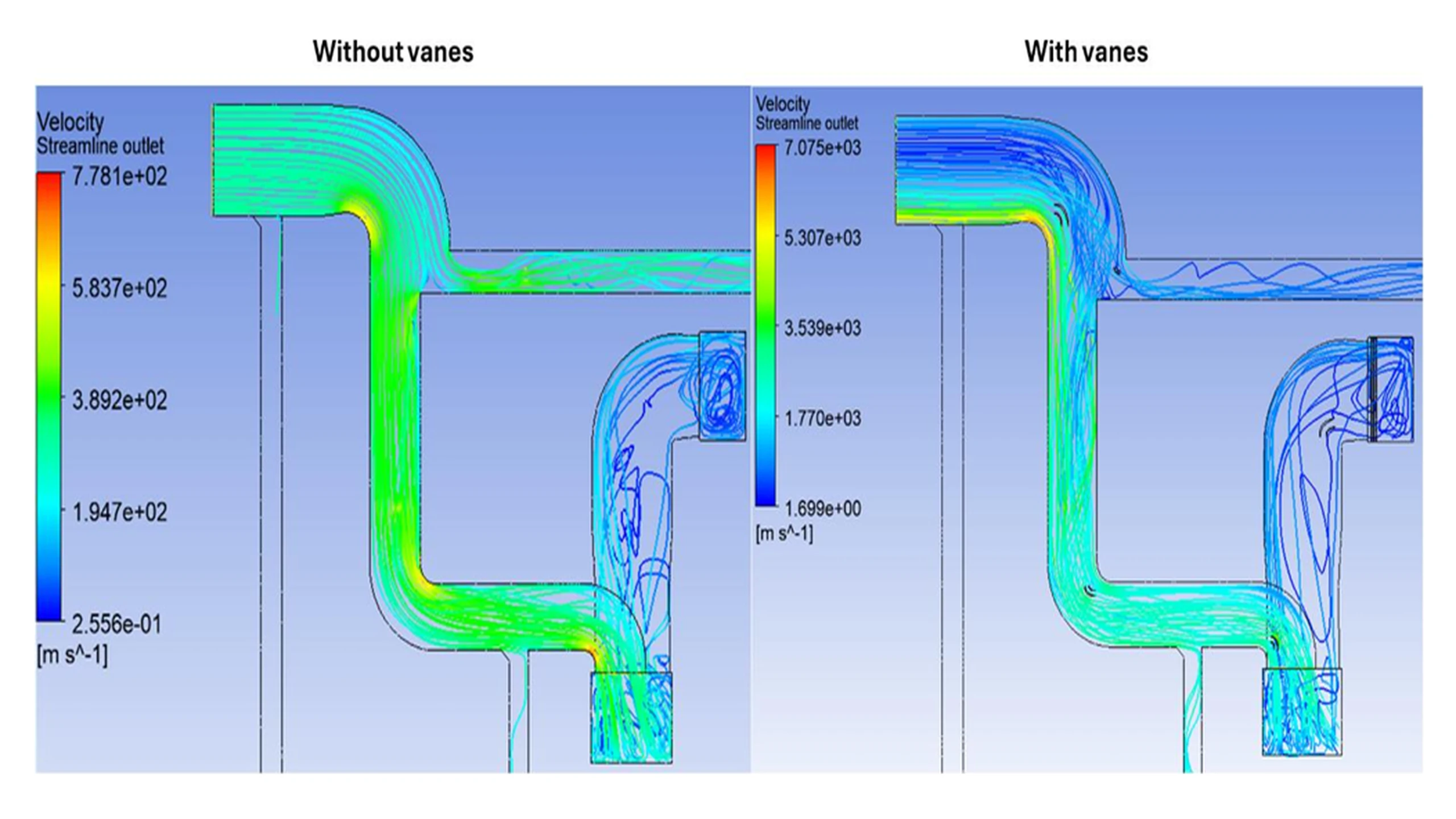

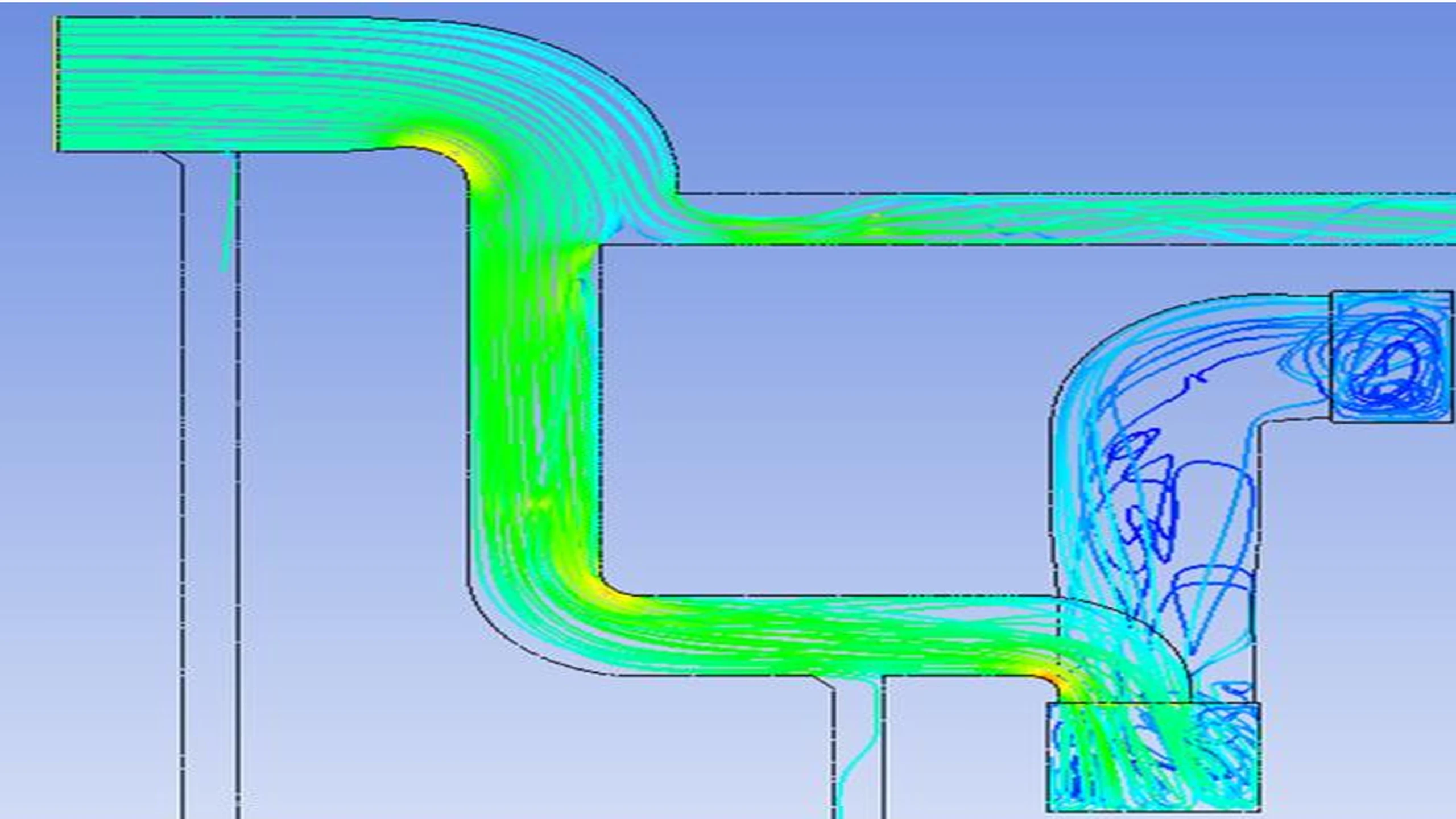

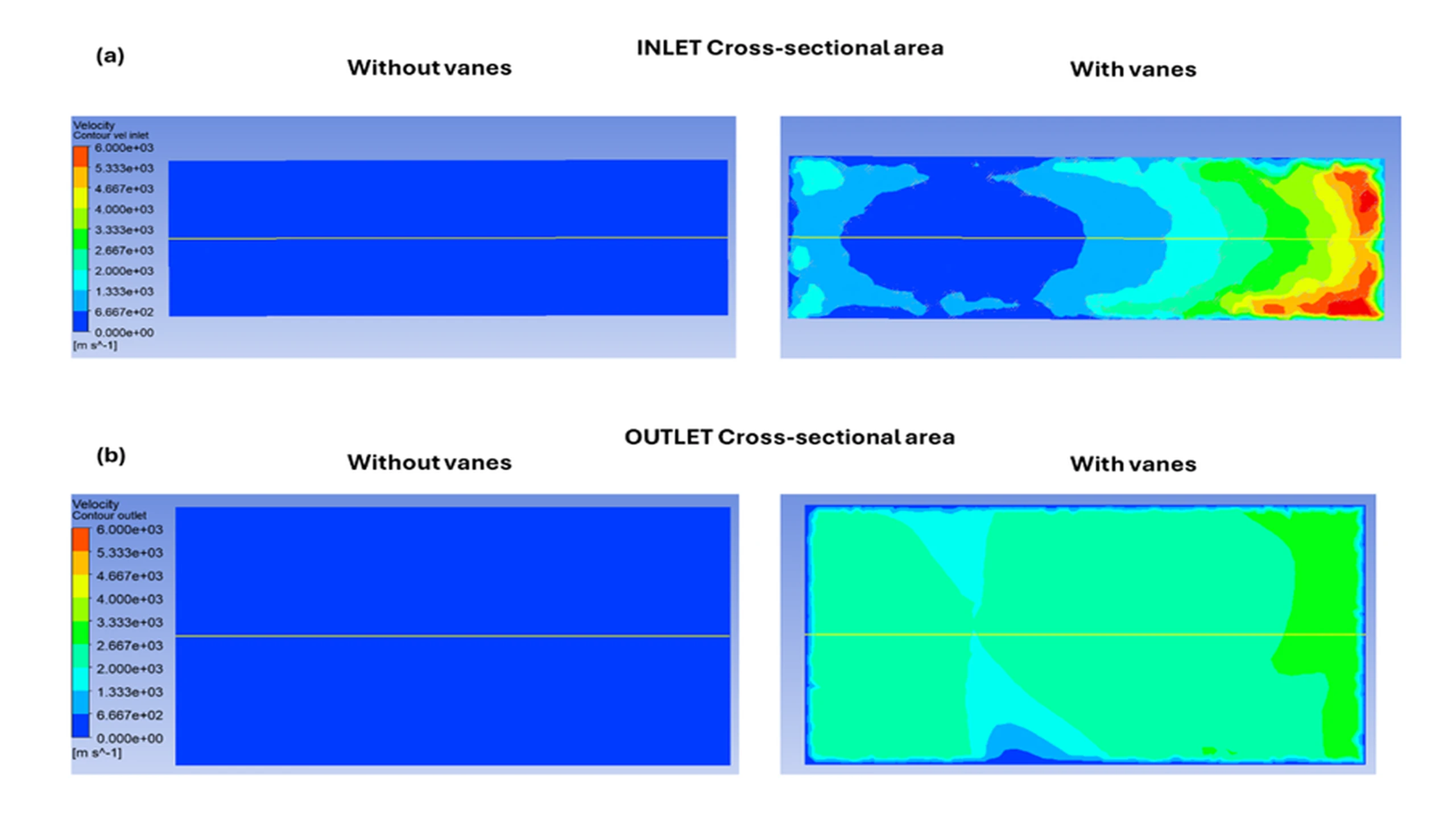

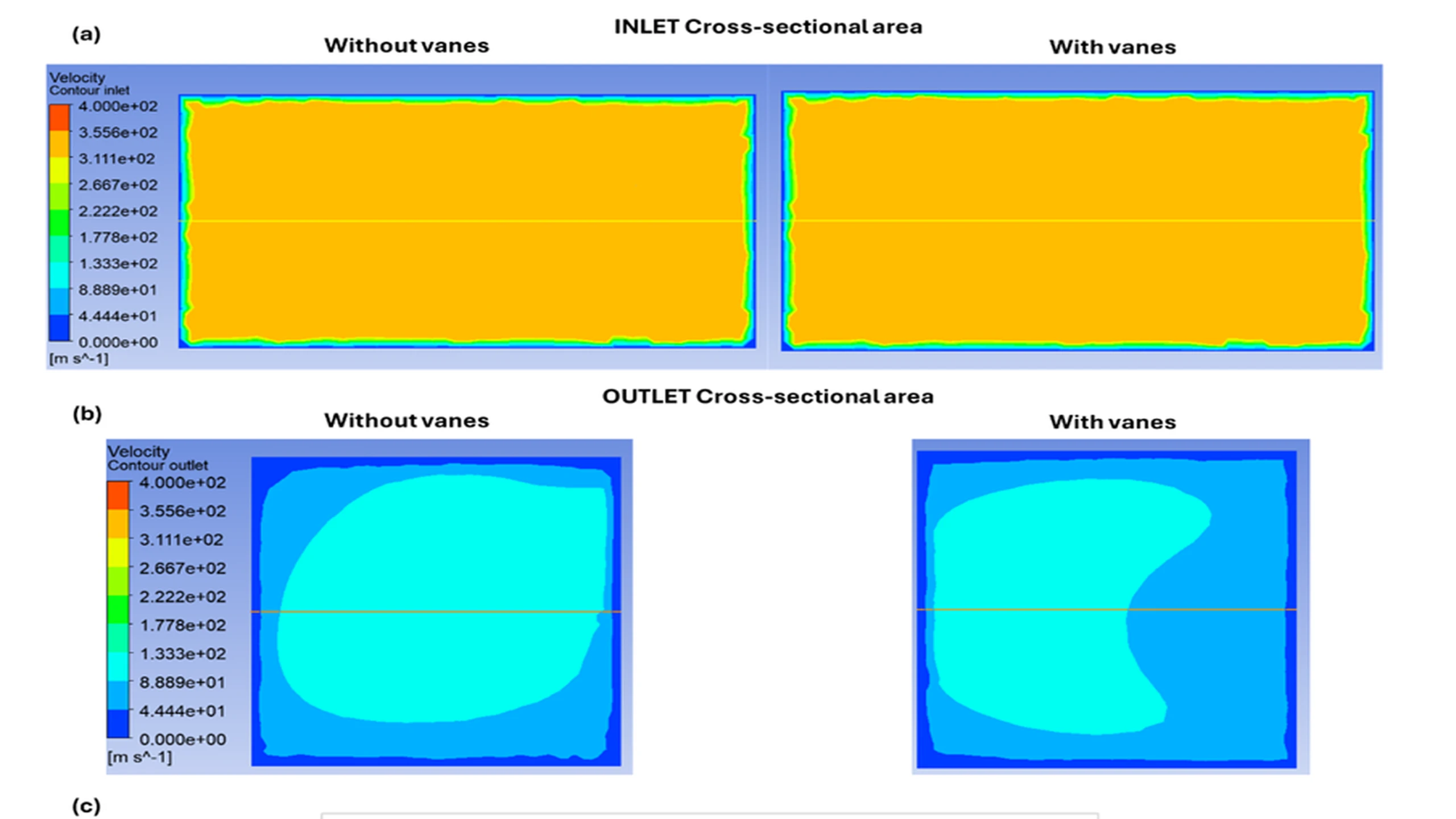

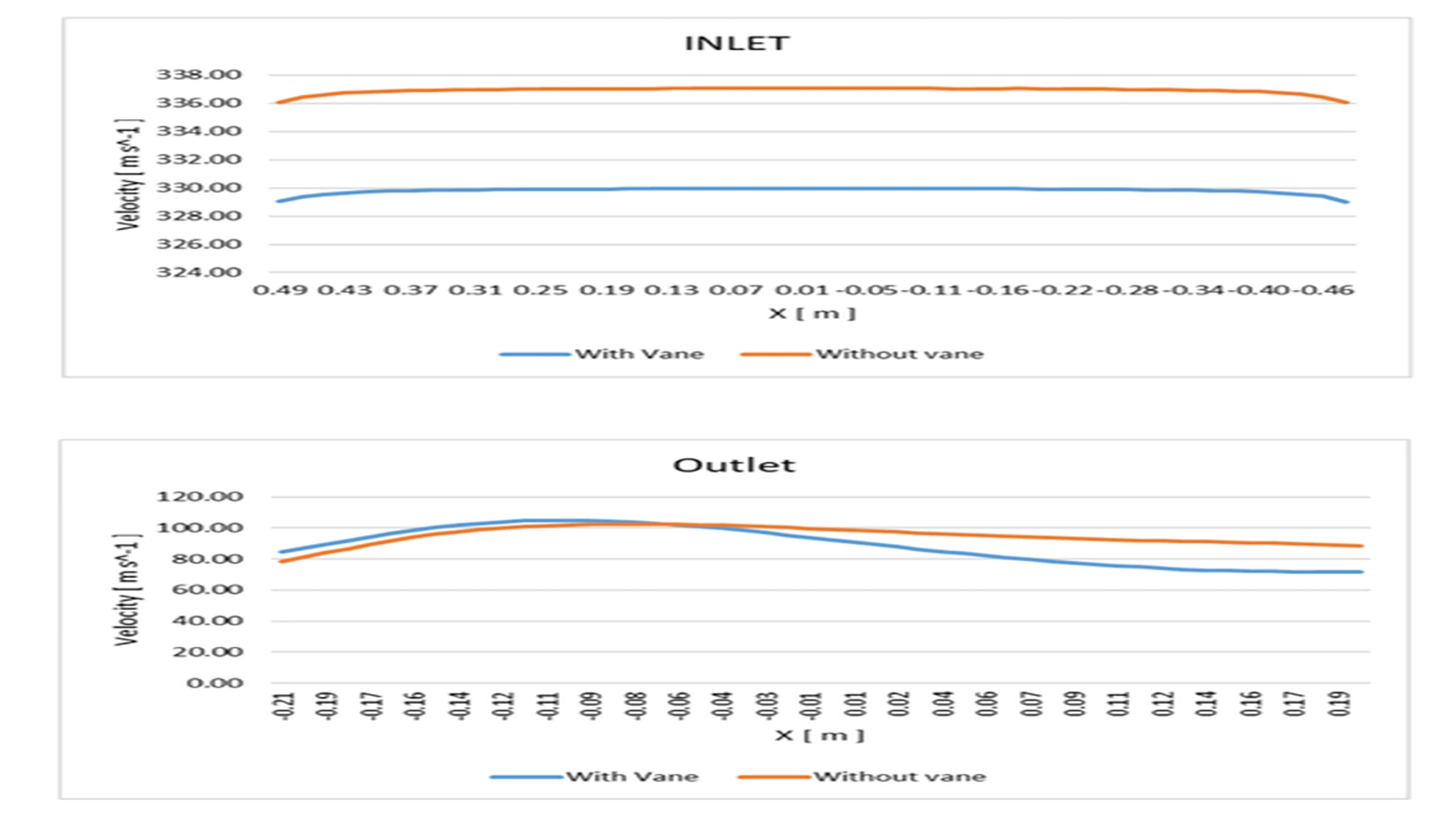

CFD Velocity Contours & Meshing

The Challenge

The primary challenge was addressing severe flow separation and energy losses occurring at sharp bends within existing HVAC duct systems. Without proper aerodynamic control, these bends created large recirculation zones, increasing turbulence, aerodynamic noise, and pressure drops. The goal was to digitally evaluate and implement guide vanes across six distinct real-world duct configurations to suppress separation, recover flow momentum, and ensure optimal airflow uniformity without the need for costly physical trials.

The Solution

Advanced Aerodynamic Flow Control

Precision ANSYS CFD Simulation

Utilized steady-state, incompressible, and isothermal flow simulations with SST turbulence modeling to accurately capture velocity gradients and baseline flow behavior.

High-Resolution Meshing

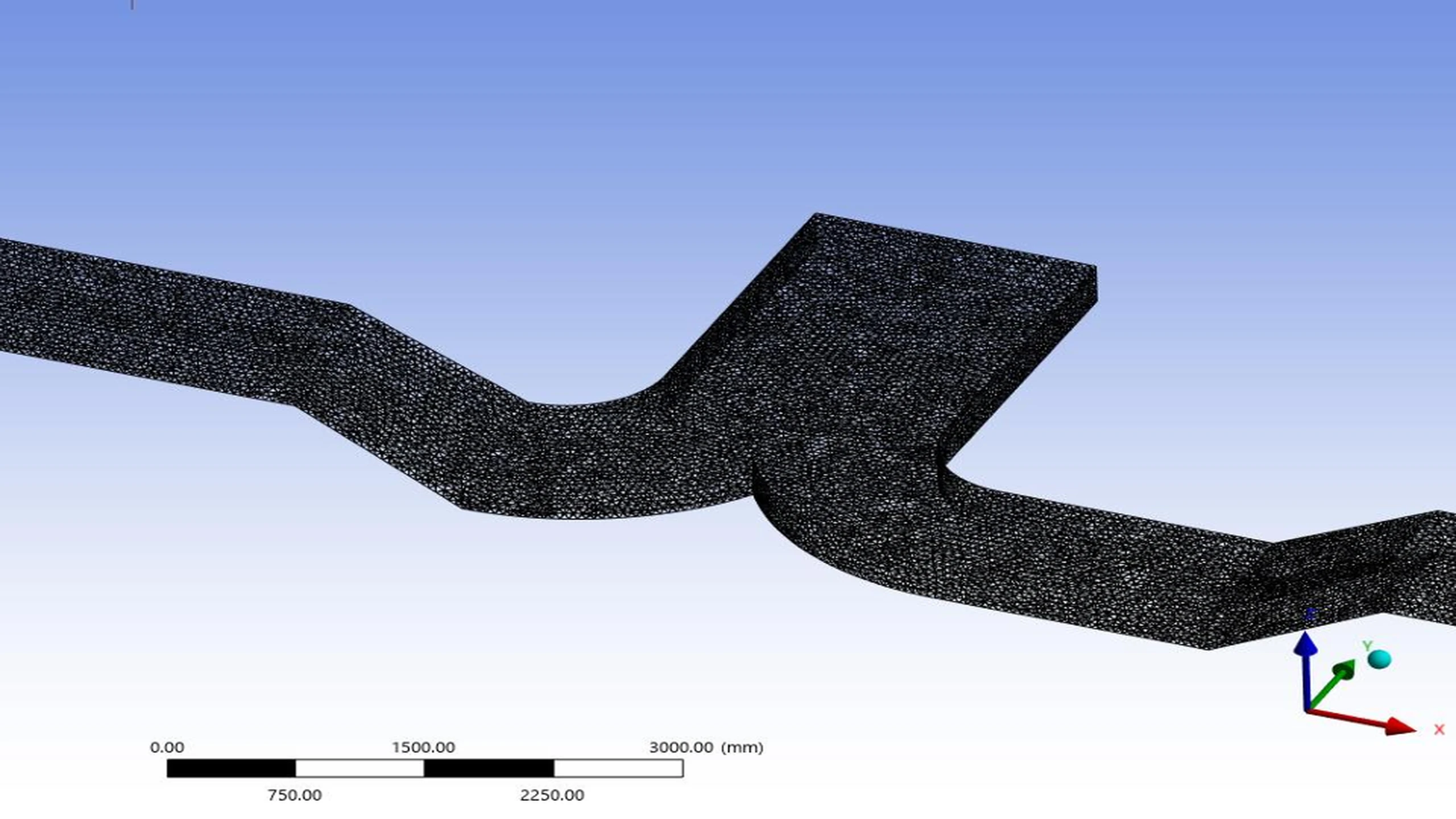

Applied unstructured tetrahedral meshing with boundary layer capture and local refinement near duct bends to precisely calculate complex recirculation zones.

Guide Vane Geometry Optimization

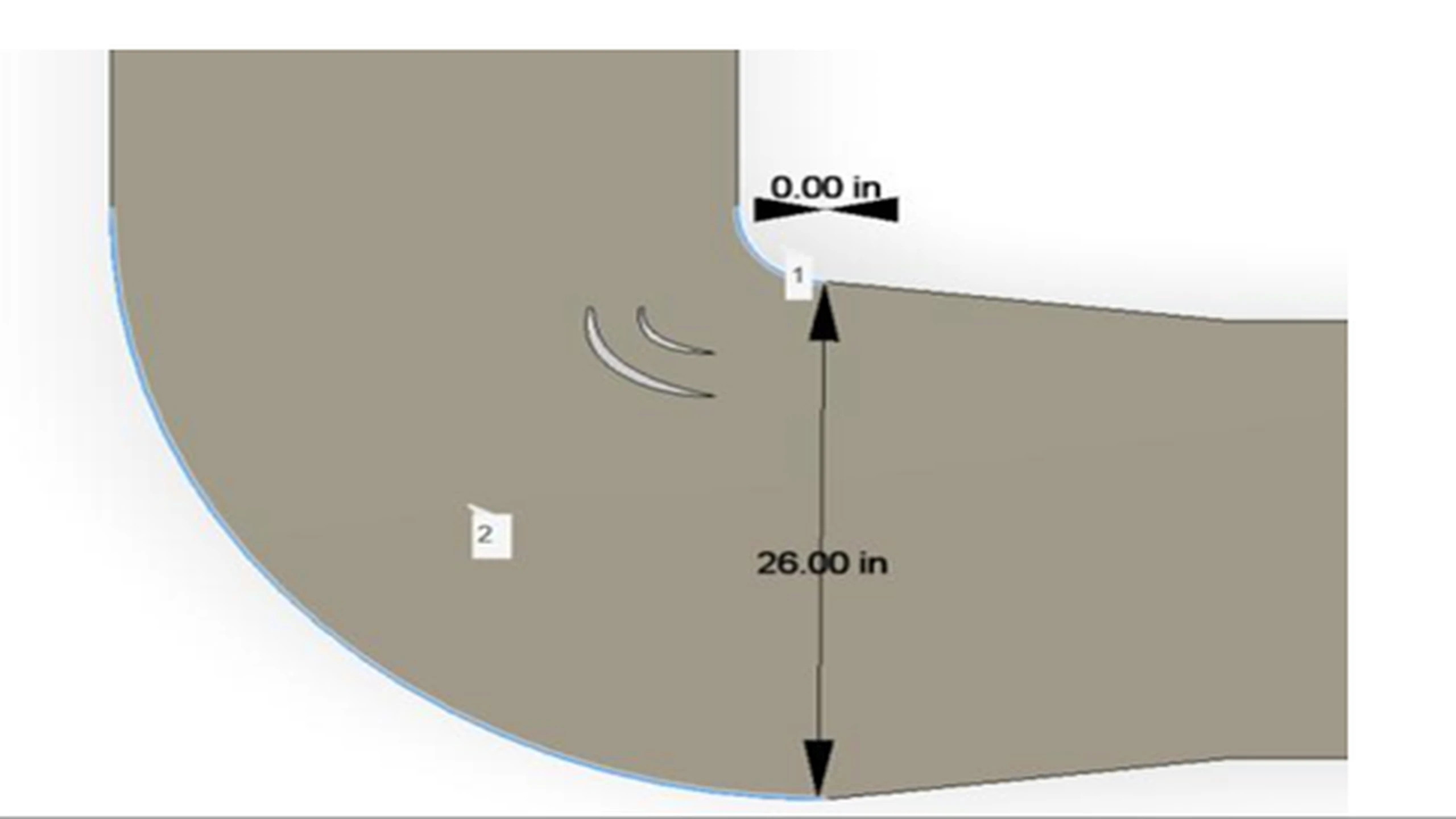

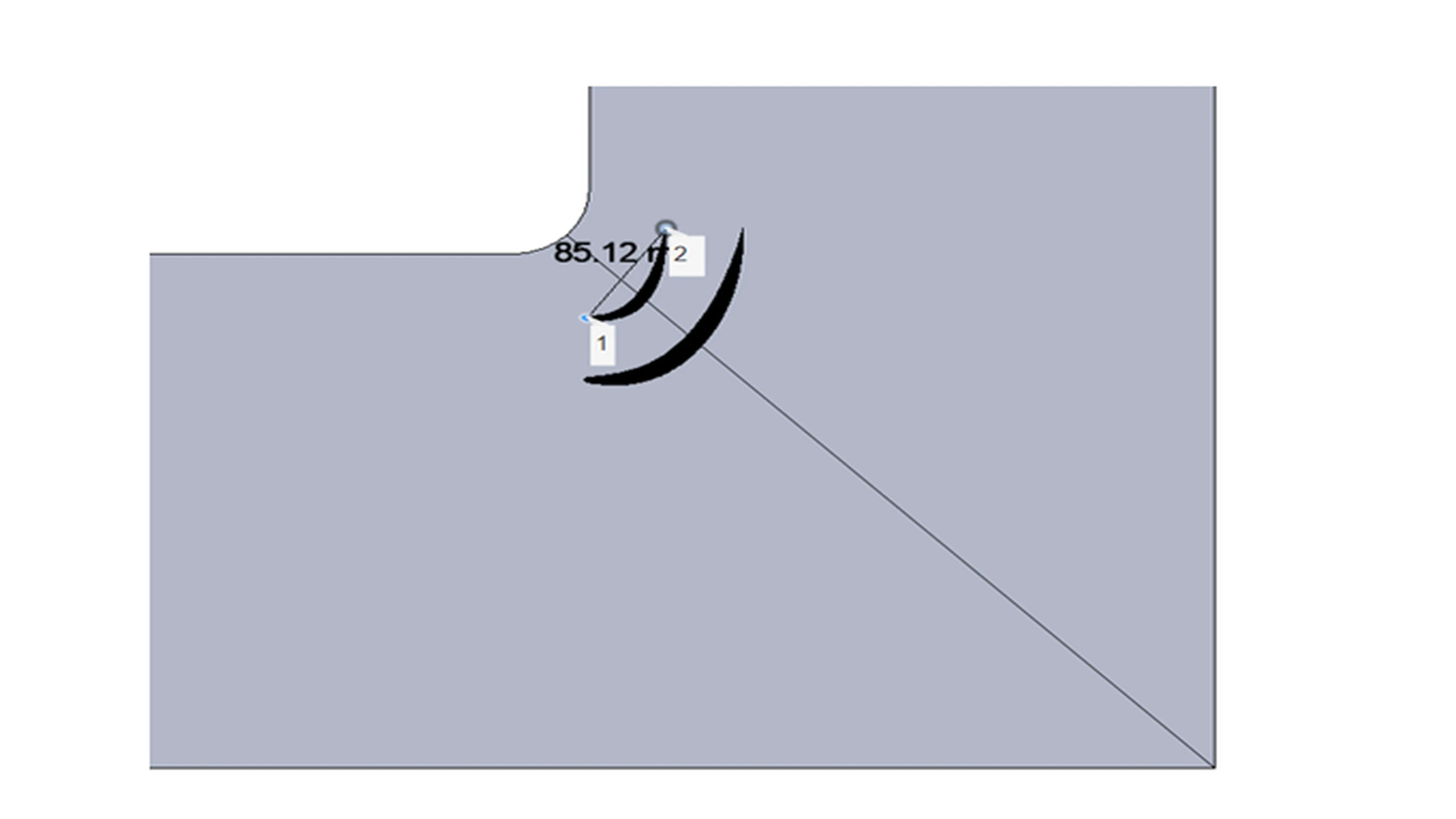

Engineered optimal proportional curvature ratios (R / W ≈ 7) to act as flow-control devices, minimizing pressure losses and restoring organized downstream momentum.

Outcome

The Computational Fluid Dynamics study successfully confirmed that strategically designed guide vanes act as highly effective flow-control devices. By applying these optimized geometries to systems with severe flow separation, we significantly suppressed turbulence, restored organized airflow, and delivered up to a 25% reduction in aerodynamic losses, vastly improving the overall efficiency and lifespan of the duct networks.

Analysis

Technical Breakdown

Simulating Airflow Dynamics

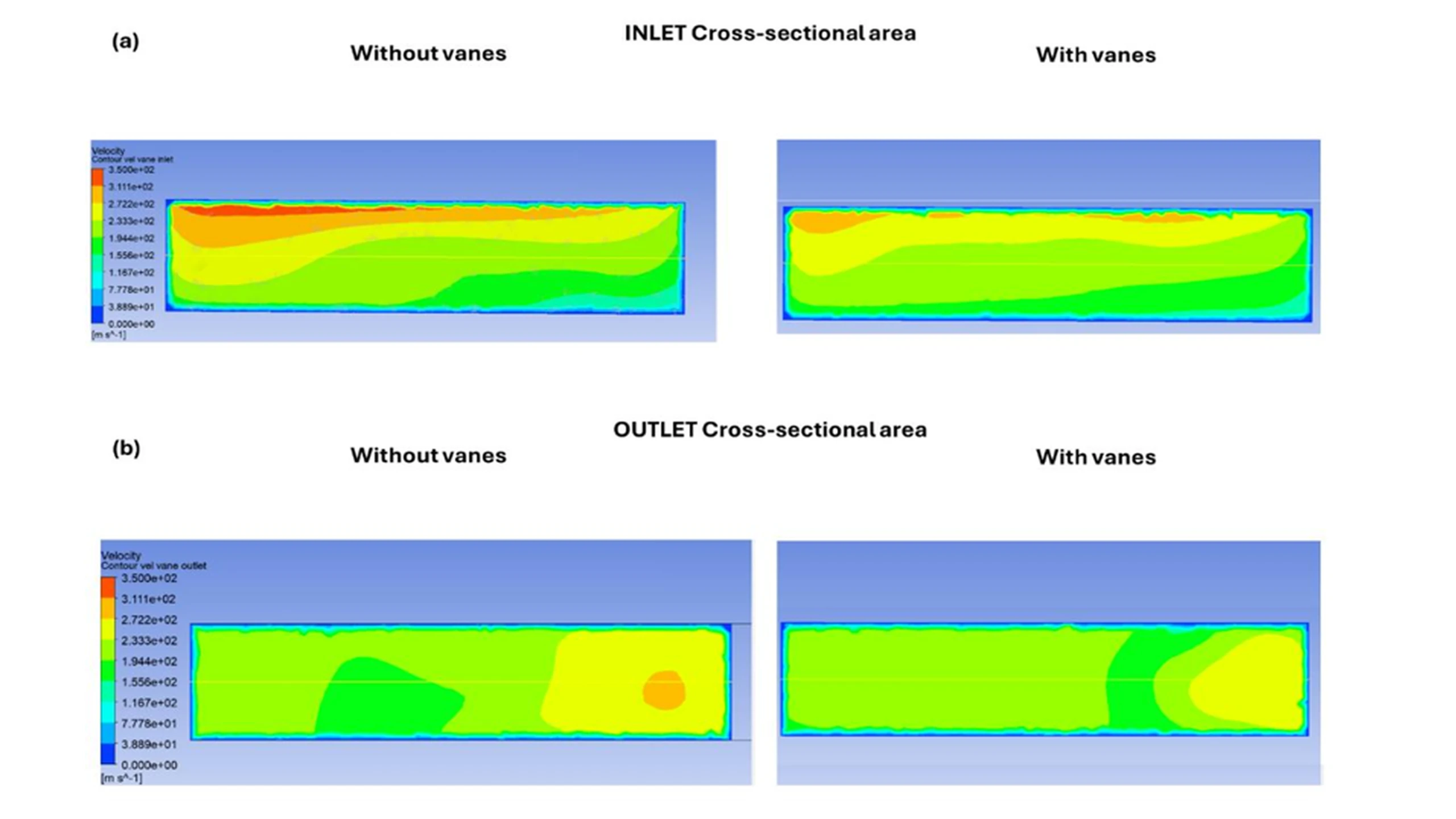

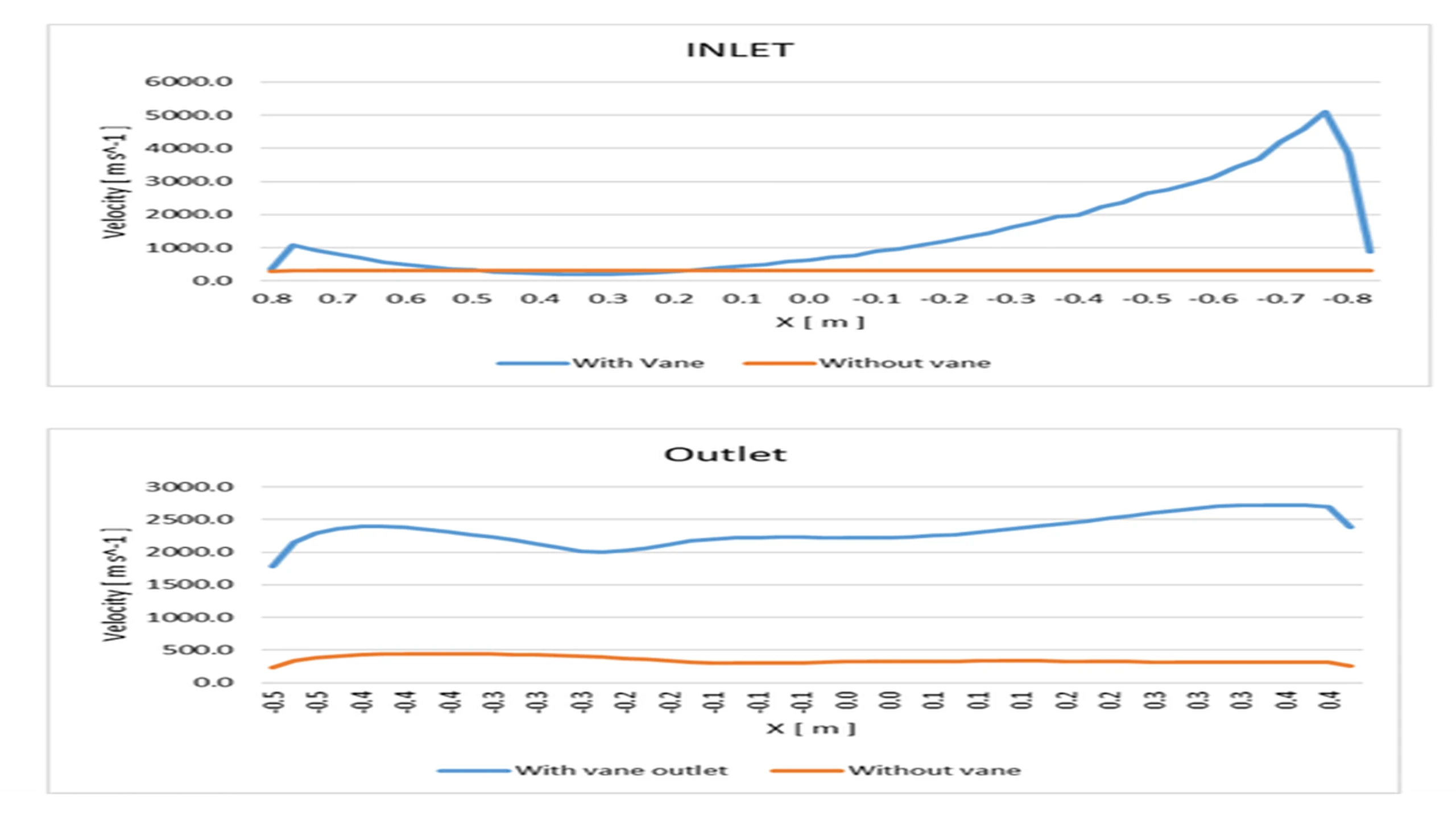

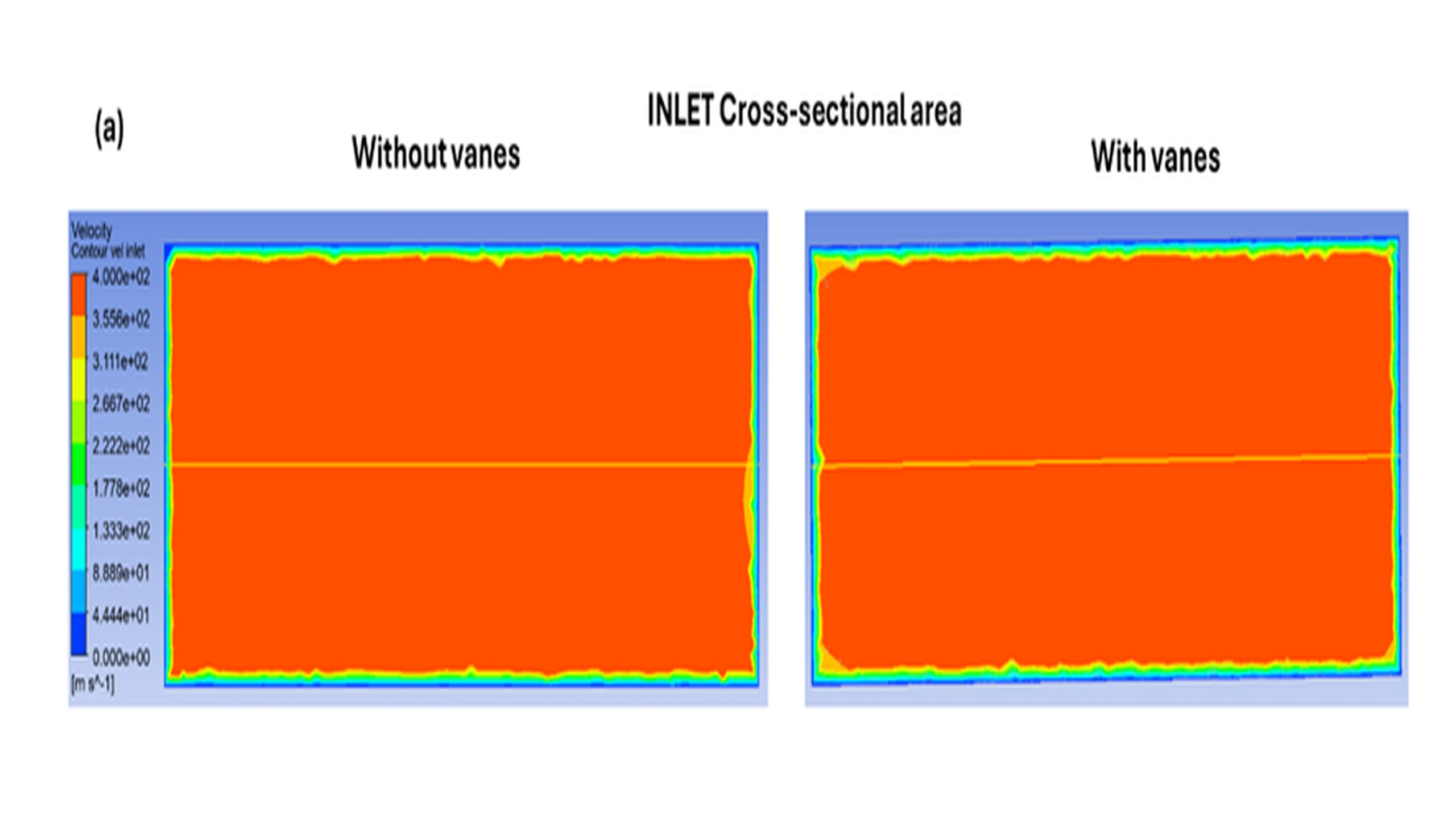

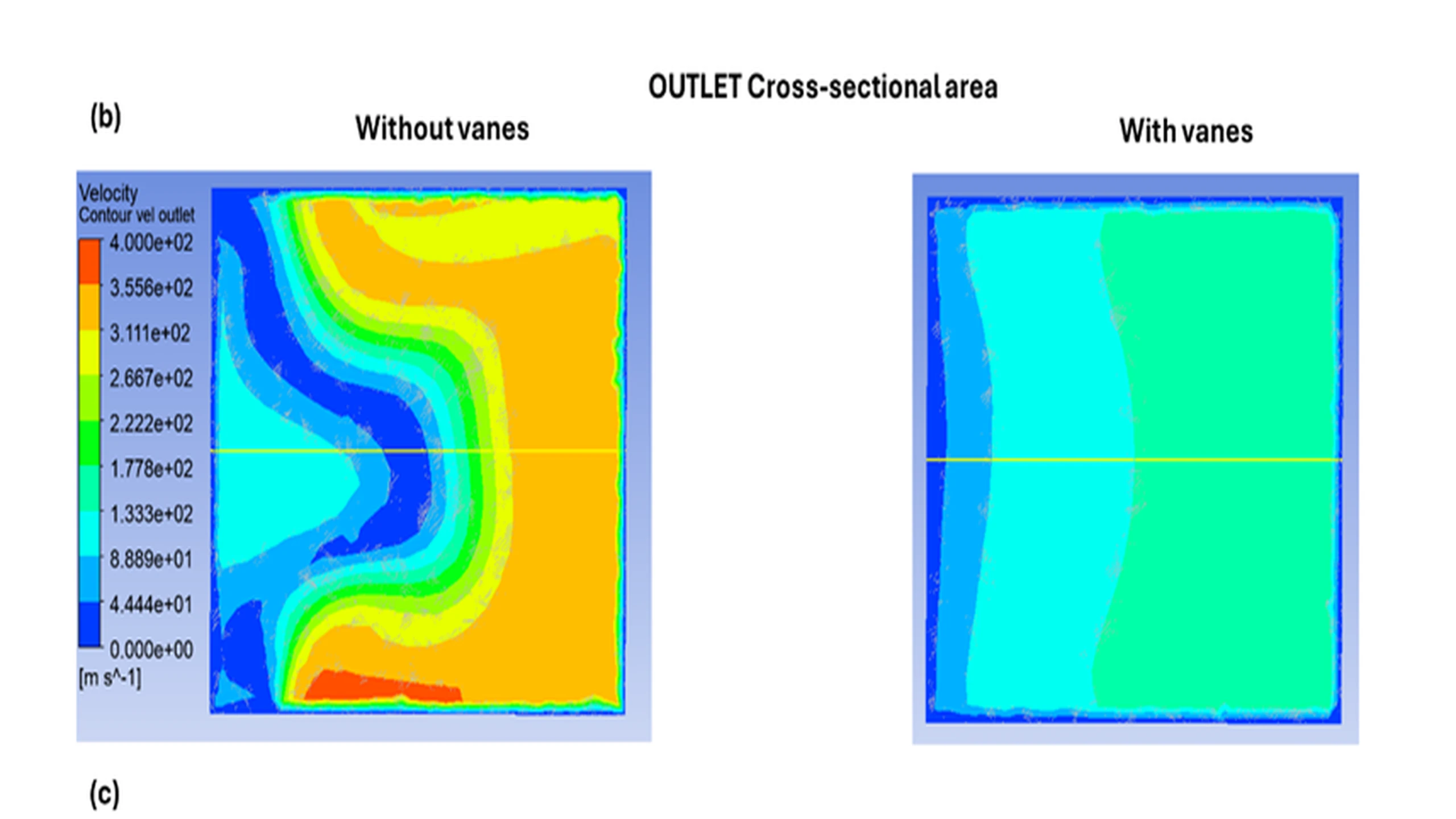

Executing this aerodynamic optimization required deep expertise in fluid mechanics and boundary condition setup. We focused heavily on contrasting the 'before and after' velocity distributions across multi-branch duct networks to validate the structural and geometric placement of the guide vanes.

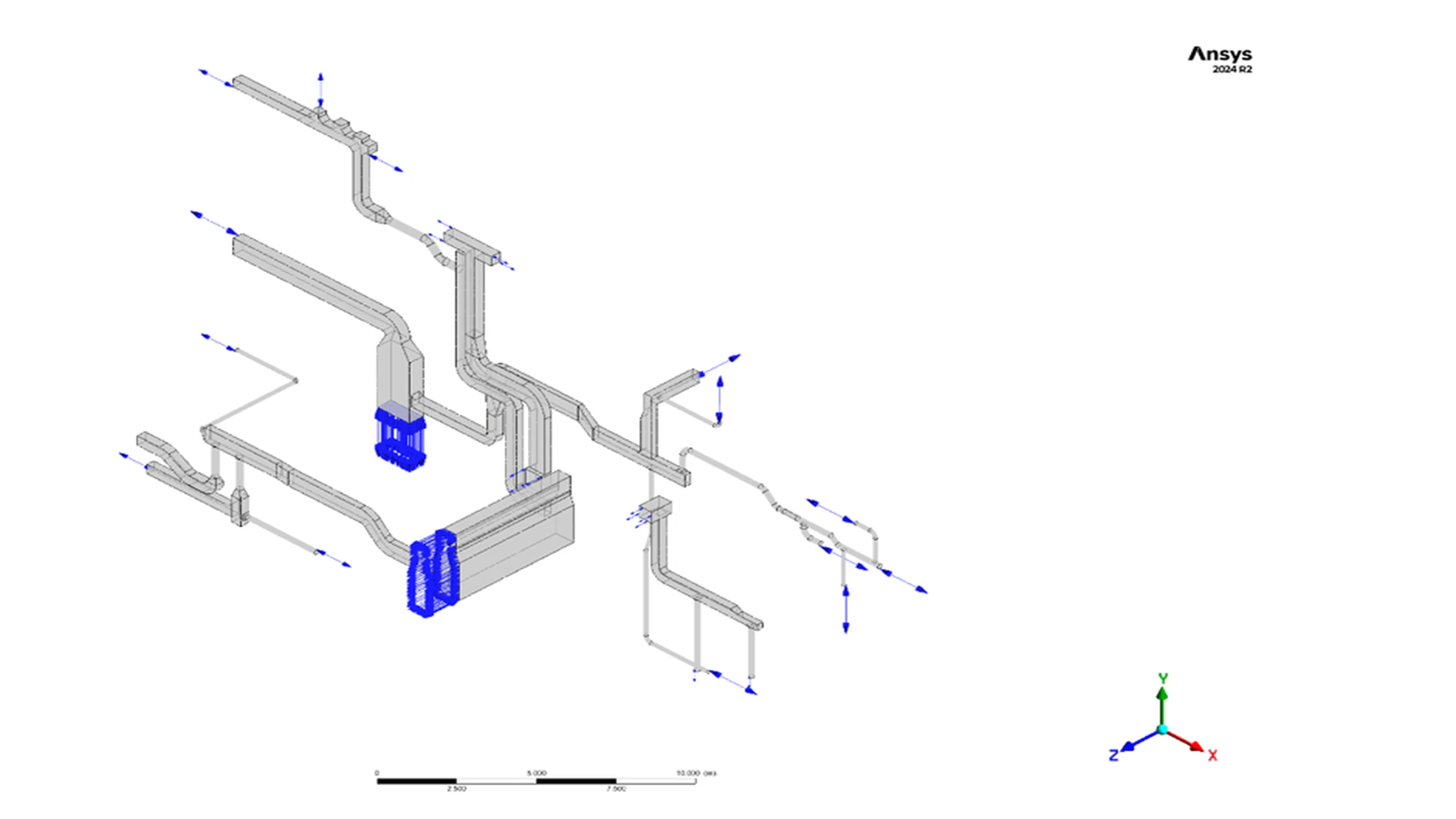

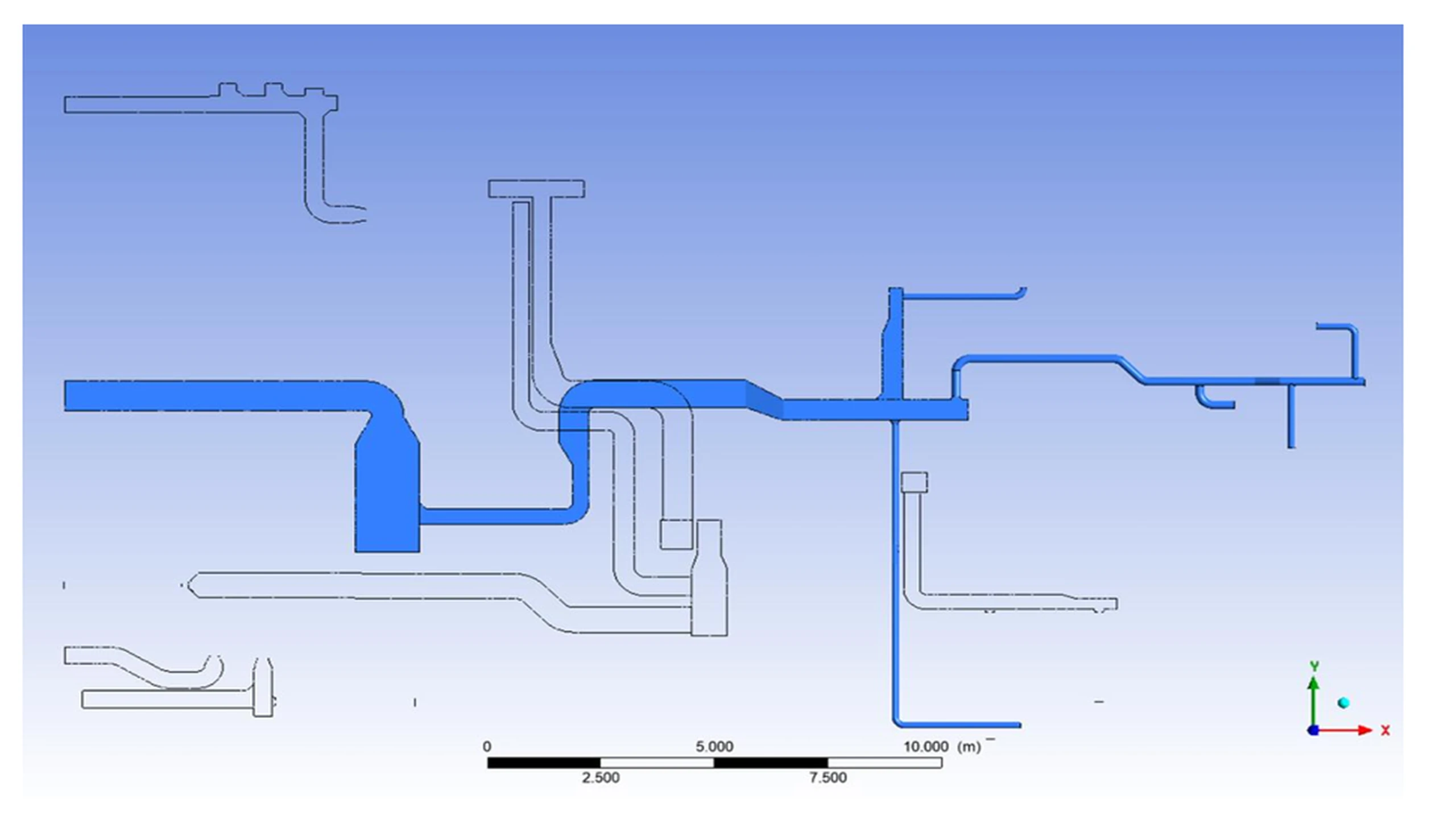

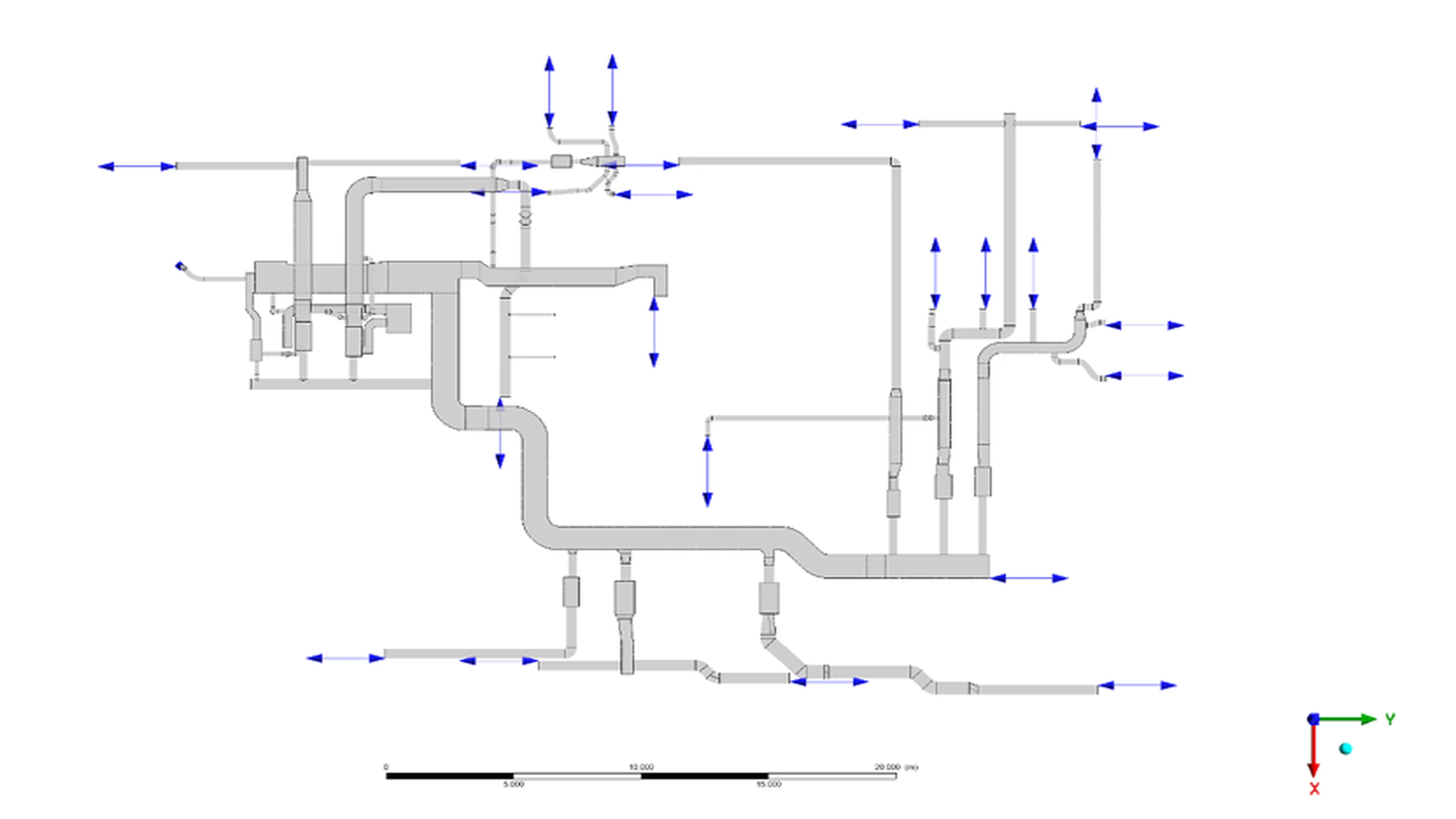

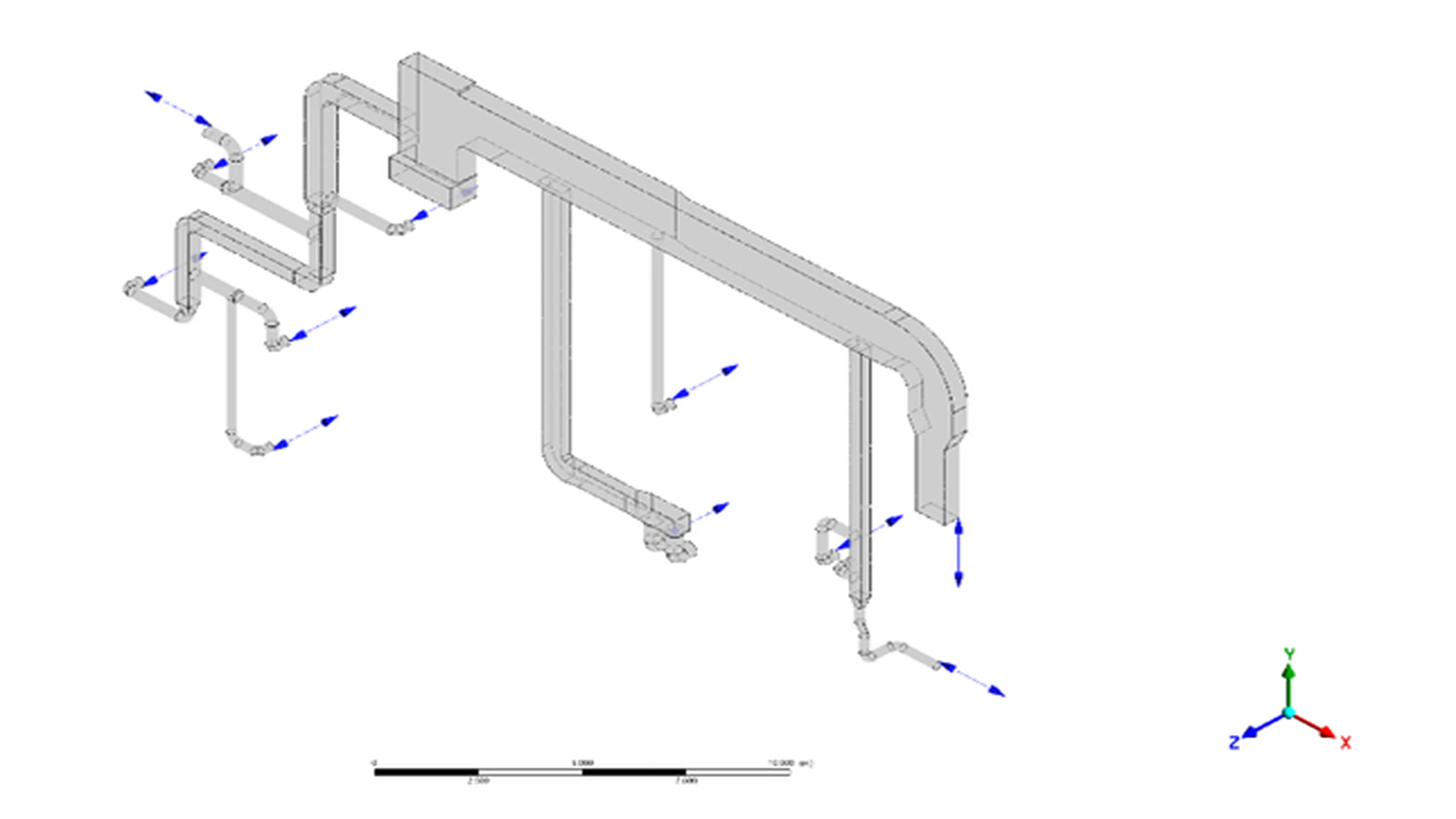

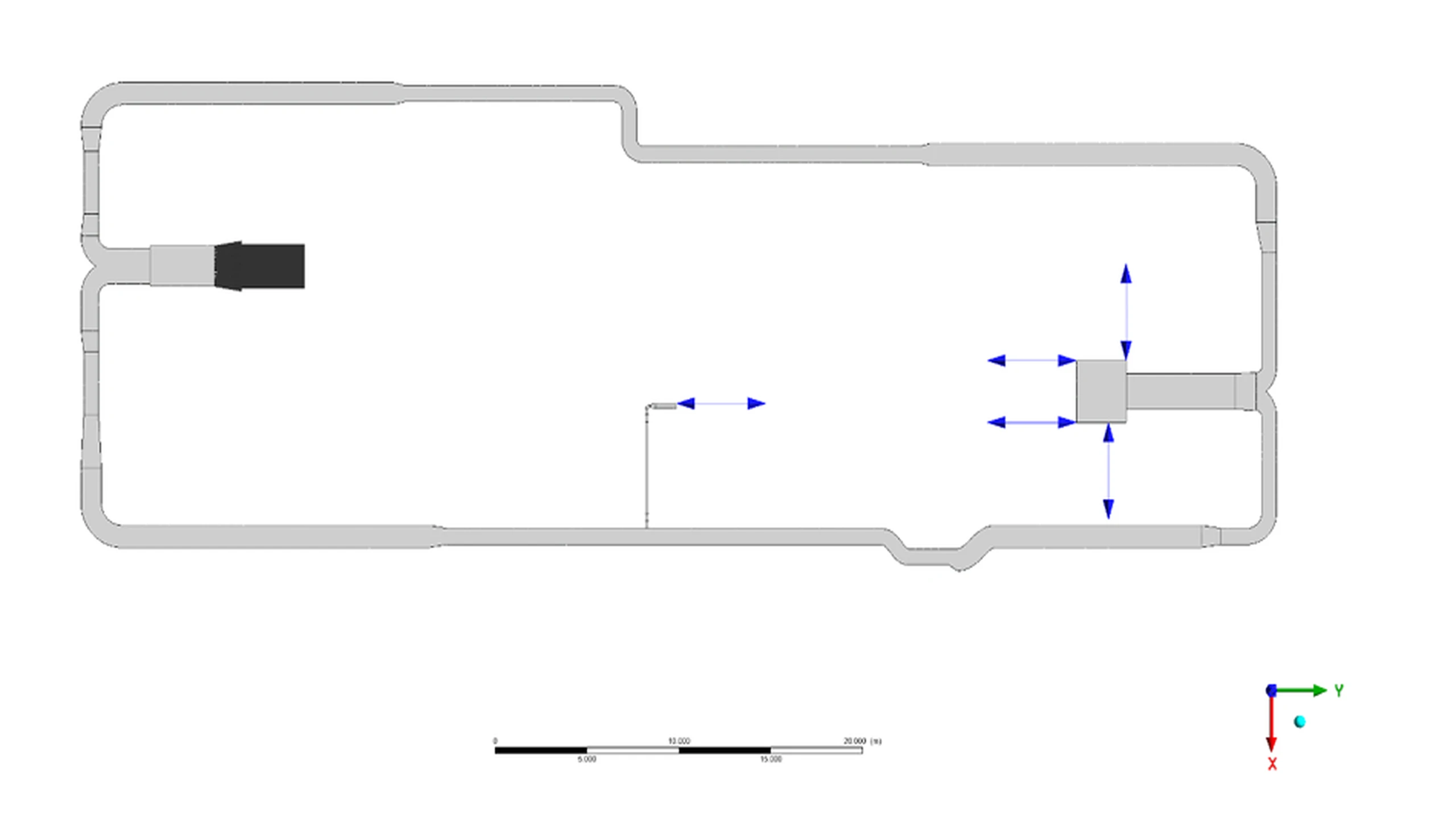

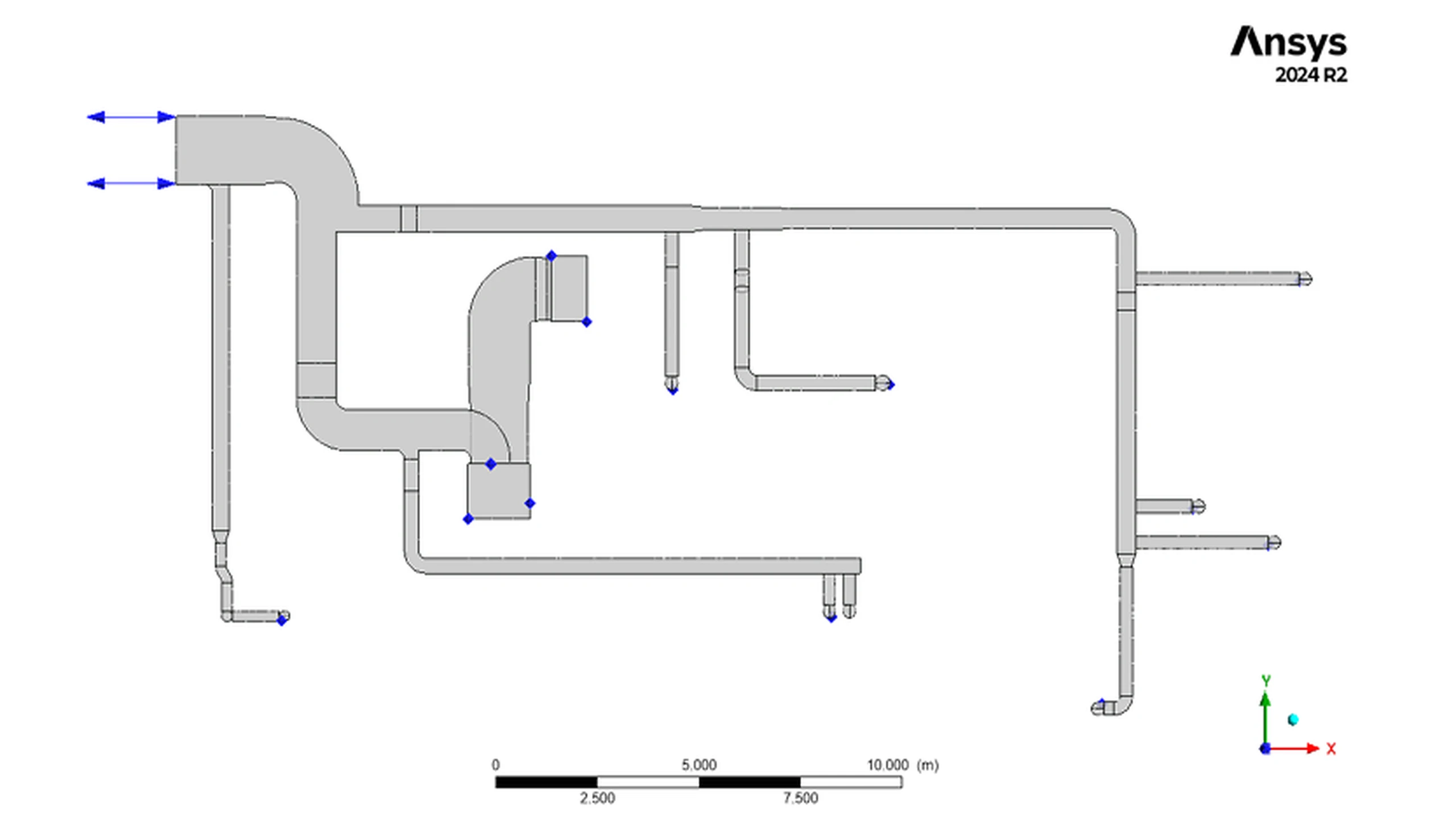

  • Evaluated six operational duct systems (including North Union and Wacker) utilizing pressure inlet and outlet boundary conditions.
  • Analyzed flow physics to eliminate severe separation and recirculation zones at sharp, critical duct turns.
  • Ensured strict numerical accuracy through converged residual values and highly stable velocity field behavior.
  • Improved downstream airflow stability and flow uniformity by up to 15%, reducing energy-wasting turbulence.
Next project preview
Finite Element Analysis Validation Finite Element Analysis Validation Finite Element Analysis Validation Finite Element Analysis Validation Finite Element Analysis Validation Finite Element Analysis Validation
