FEA Structural Validation

Advanced Finite Element Analysis (FEA) and static structural stress simulations designed to validate the safety, stability, and manufacturability of high-precision mechanical alloy steel assemblies before production.

85% Reduced Design Risk
1.5 - 2.6 Factor of Safety
FEA Advanced Validation

The Impact

Ensuring Manufacturing Readiness

85%

Reduced Design Risk

40%

Reduced Rework & Errors

6 Weeks

Accelerated Timeline

$75k

Saved in Testing Costs

Visual Showcase

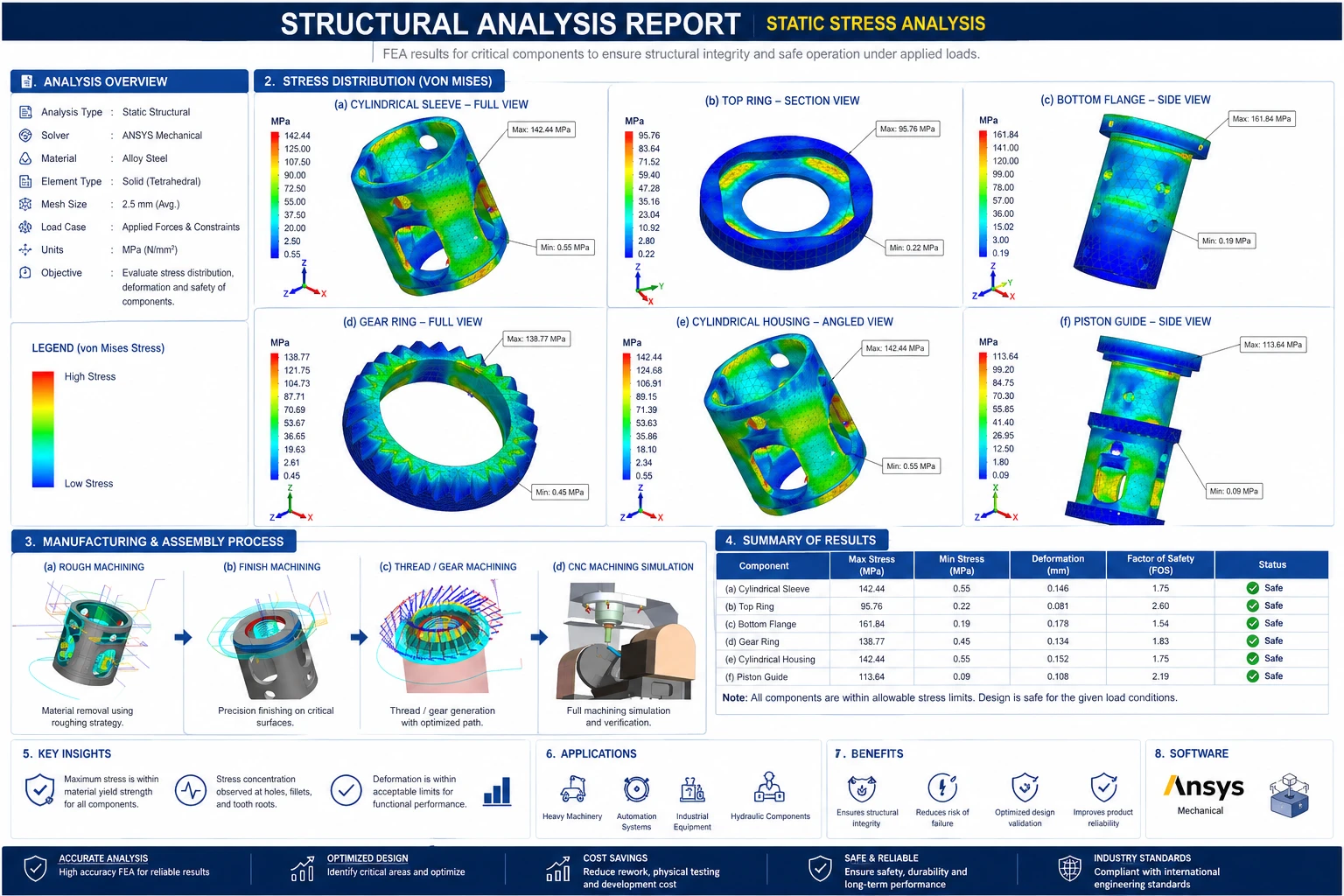

FEA Stress Maps & Engineering Data

The Challenge

The client needed to rigorously verify whether their high-precision mechanical components (including cylindrical housings, flanges, and gear rings) would remain safe and reliable under heavy operational loads. Relying solely on physical testing posed severe risks: unknown stress distributions, potential deformation, and unverified manufacturability of complex geometries. Without digital simulation, the project faced the threat of unexpected component failure, manufacturing errors, and highly costly redesigns after fabrication.

The Solution

Advanced FEA & Machining Simulation

High-Accuracy 3D Modeling

Developed detailed, high-accuracy 3D simulation models of the precision mechanical assembly, applying real-world operational loads and fixed support boundary conditions.

Structural Stress Analysis

Performed advanced Finite Element Analysis (FEA) to detect maximum stress concentrations, evaluate deformation behavior, and ensure uniform load distribution across all primary surfaces.

CNC Machining Validation

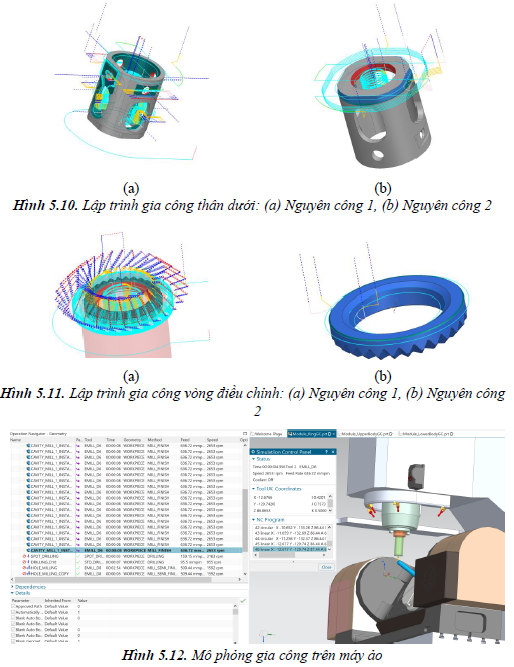

Simulated complex machining operations to verify the manufacturing feasibility and production readiness of the high-strength alloy steel components.

Outcome

The simulation provided data-driven validation of the design before manufacturing commenced. We confirmed that the structure demonstrated high stiffness, minimal deformation, and remained well within allowable safety limits (Factor of Safety: 1.5 – 2.6). This advanced engineering workflow drastically reduced design risk by 85%, prevented potential warranty claims, and enabled confident production approval while saving tens of thousands of dollars in physical testing.

Analysis

Technical Breakdown

Validating Mechanical Integrity

Executing this structural validation required deep expertise in mechanical engineering and static stress analysis. We mapped out the exact stress limits across multiple components, ensuring no critical structural failure could occur under peak operational loading.

  • Analyzed the Bottom Flange and Cylindrical Housing, confirming maximum stress levels (162 MPa and 142 MPa) remained safely within material limits.
  • Tracked minimal component deformation (peaking at only 0.178 mm), proving exceptional structural stiffness and load-bearing stability.

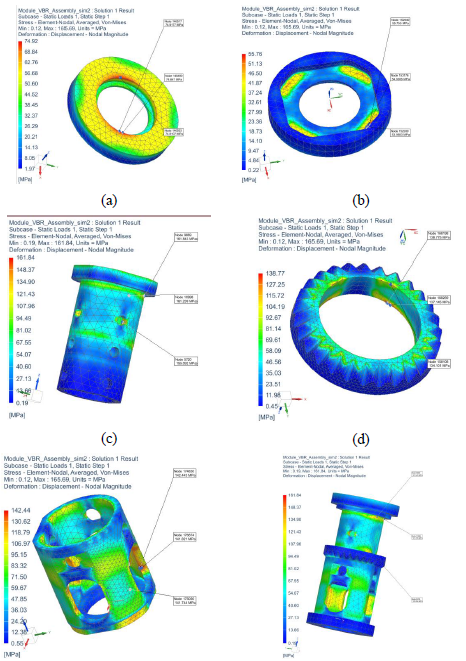

  • Generated detailed engineering color-scale maps (Blue = Low Stress to Red = High Stress) for clear visualization of critical geometric transitions.
  • Validated complete manufacturing feasibility, ensuring the complex alloy steel geometries could be efficiently machined without errors.
