FEA: Long-Reach Mechanical Arm

A comprehensive Finite Element Analysis (FEA) to validate the structural strength, deformation limits, and load safety of a heavy-duty mechanical boom assembly under extreme operational conditions.

68,780 N Operational Load
90% Risk Reduction
FEA Structural Validation

The Impact

Ensuring Operational Safety

90%

Design Risk Reduction (Up to)

50%

Saved in Prototype Costs

40%

Extended Service Life

$95k

Maximum Cost Savings

Visual Showcase

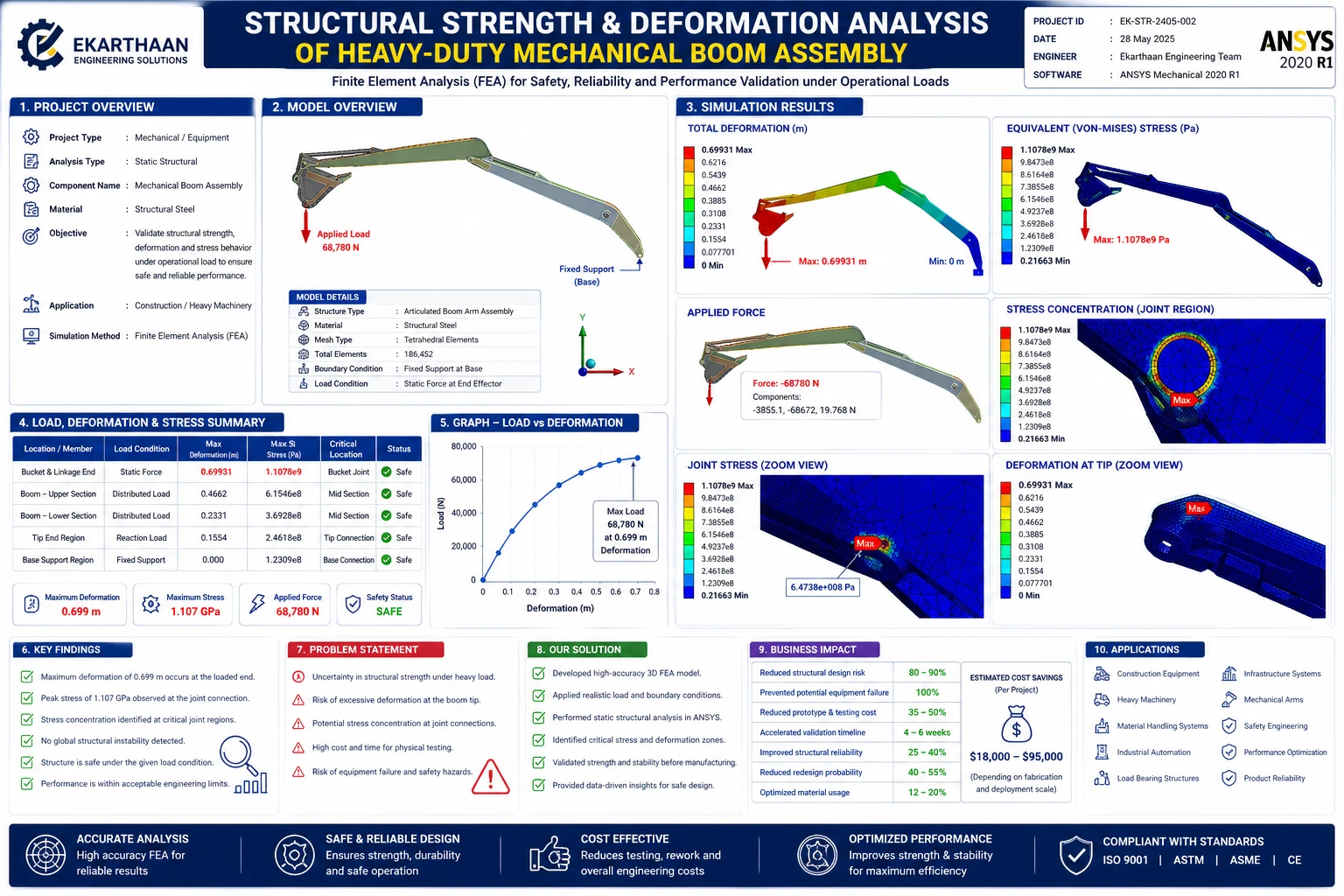

FEA Stress Maps & Deformation

The Challenge

The client needed to rigorously verify whether their heavy-duty mechanical boom system could safely handle massive operational loads without excessive deformation or failure. However, severe risks existed: unknown stress concentrations at articulating joints, potential structural fatigue, and significant safety concerns during field operation. Without digital simulation, physical testing would be prohibitively expensive, and the project faced the threat of equipment downtime, costly redesigns, and catastrophic structural failure in the field.

The Solution

High-Fidelity 3D Simulation

Accurate 3D FEA Modeling

Developed a high-fidelity 3D simulation model of the articulated structural steel boom assembly, applying realistic boundary conditions and fixed base supports.

Static Structural Load Analysis

Simulated the application of a massive 68,780 N operational force at the end effector to accurately measure stress distribution and structural behavior.

Critical Zone Identification

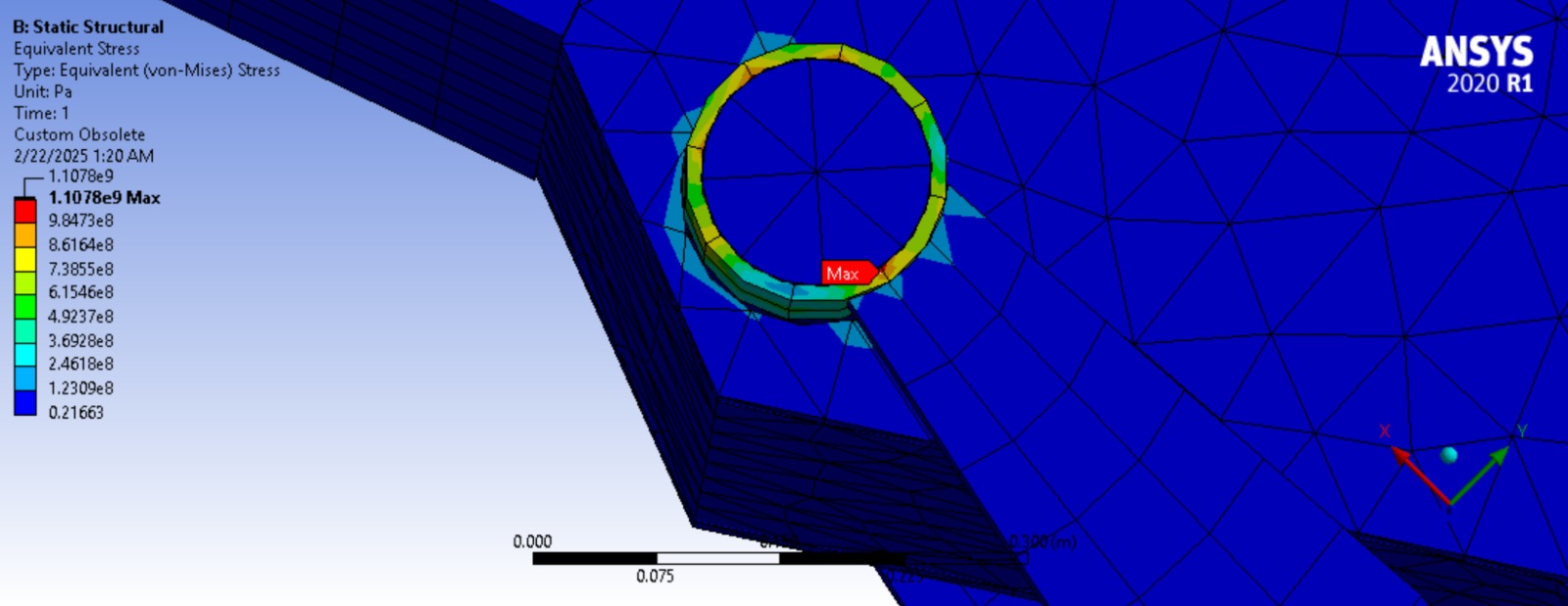

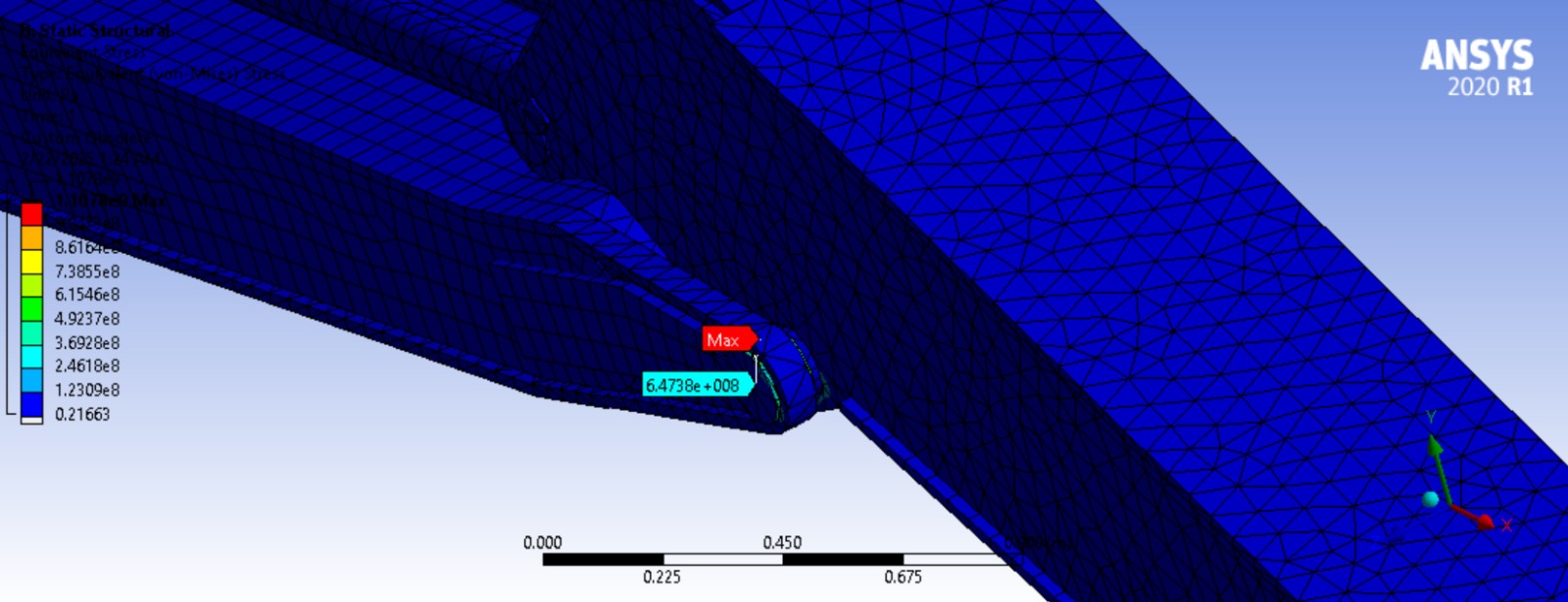

Pinpointed maximum stress concentrations (reaching 1.107 GPa) specifically near the joint and connection regions, allowing for targeted and data-driven structural reinforcements.

Outcome

The comprehensive FEA simulation provided a reliable, data-driven validation of the boom's structural performance before fabrication. We successfully identified critical stress zones and confirmed a predictable maximum deformation of 0.699 m. This proactive engineering approach reduced structural design risk by up to 90%, prevented potential field safety incidents, and saved the client up to $95,000 in physical prototyping and redesign costs.

Analysis

Technical Breakdown

Validating Heavy-Duty Performance

Executing this structural validation required precise computational modeling of high-strength structural steel under extreme loads. We focused heavily on capturing the realistic load vectors and connection behaviors to ensure the mechanical arm would maintain absolute structural integrity in demanding industrial environments.

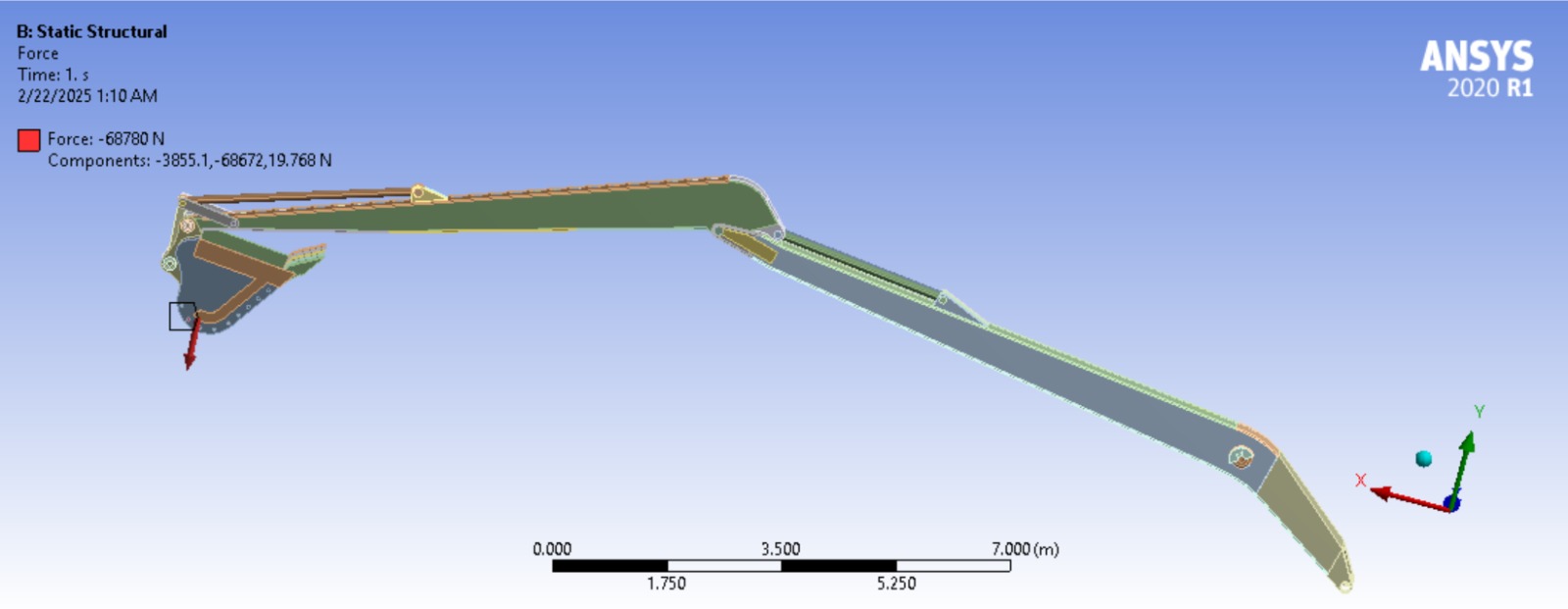

  • Applied a continuous 68,780 N (≈ 6.9 metric tons) force at the end effector to simulate peak operational stress.

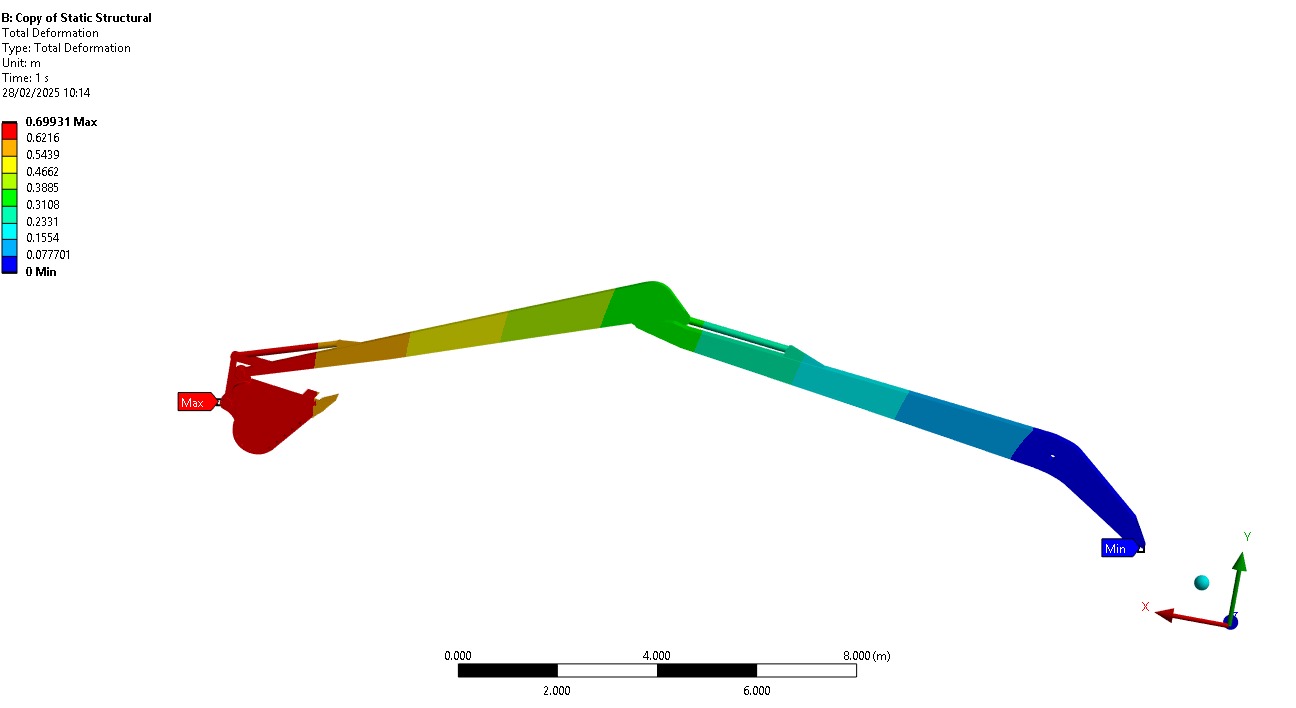

  • Mapped structural displacement, identifying a controlled maximum deformation of 699 mm at the load application point.
  • Generated detailed engineering color-scale maps (Blue to Red) to visualize stress concentrations at critical joint interfaces.
  • Validated overall system stability, ensuring no global structural instability occurred under dynamic operational loading.

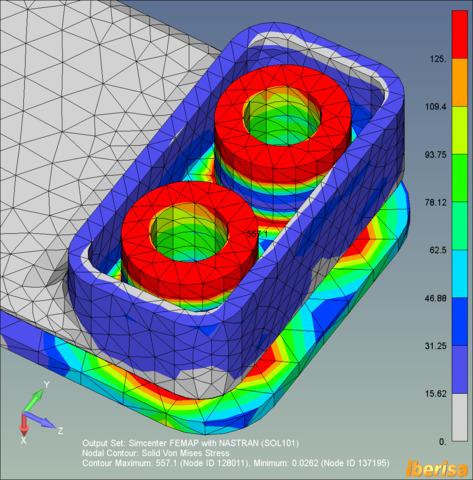

Next project preview
