Structural FEA: L-Track Bracket

A comprehensive Finite Element Analysis (FEA) and manufacturability validation of a precision CNC-machined aluminum L-Track mounting bracket to ensure high structural stiffness, load safety, and production readiness.

5.6 Factor of Safety
90% Reduced Failure Risk
CNC Manufacturability Verified

The Impact

Accelerating Manufacturing Readiness

90%

Reduced Failure Risk (Up to)

45%

Saved in Testing Costs

4 Weeks

Prevented Production Delays

$42k

Maximum Cost Savings

Visual Showcase

FEA Contours & Machining Data

The Challenge

The client required absolute confirmation that their dual saddle L-Track mounting bracket would safely support heavy operational loads while remaining highly manufacturable. However, significant risks existed: unknown stress concentrations around critical bolt holes, potential structural deformation during service, and unverified CNC machining complexity. Relying solely on physical testing would lead to high costs, extensive design rework, and the severe threat of product failure or warranty claims in the field.

The Solution

Advanced FEA & Manufacturability

Manufacturability Validation

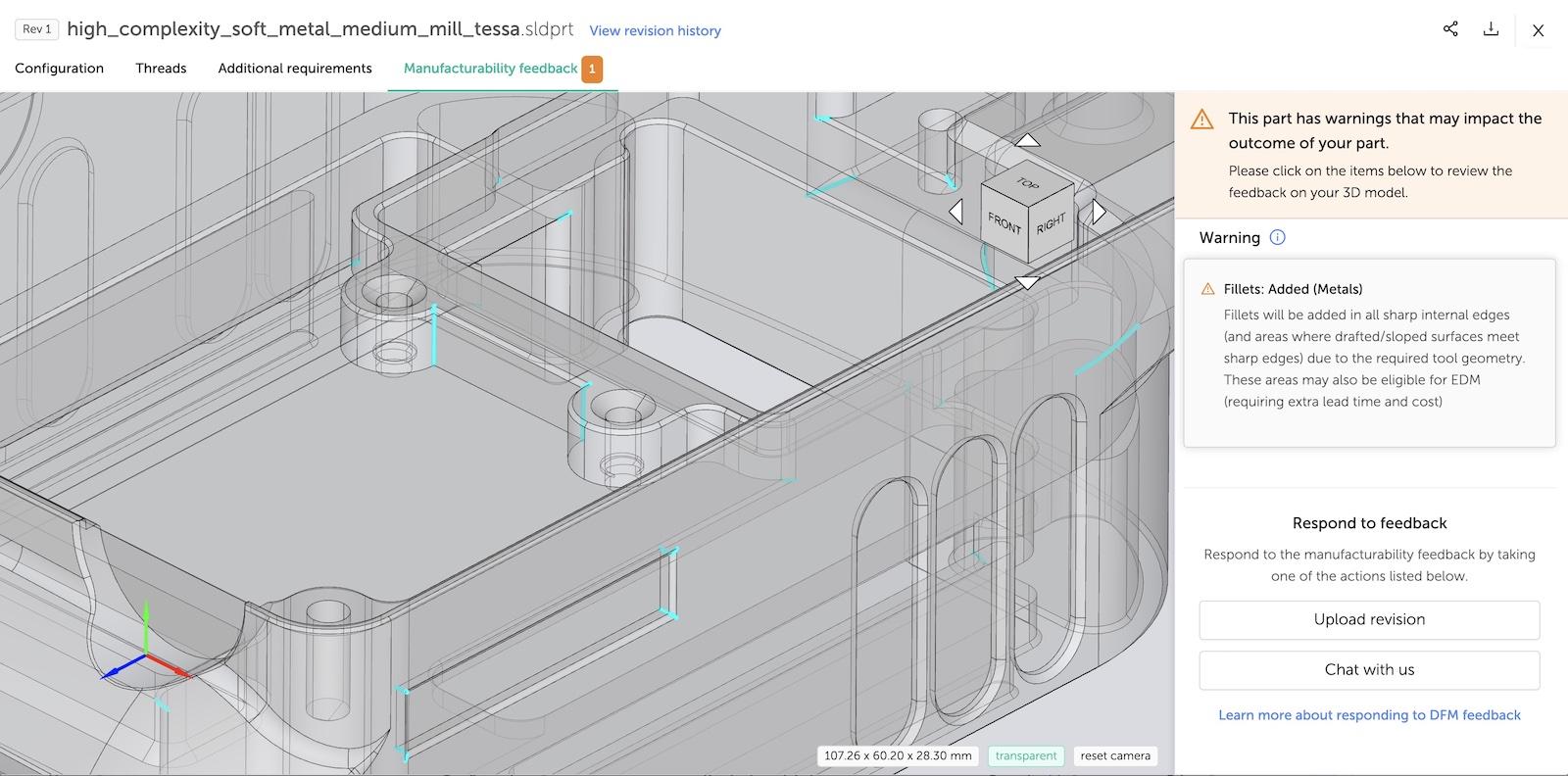

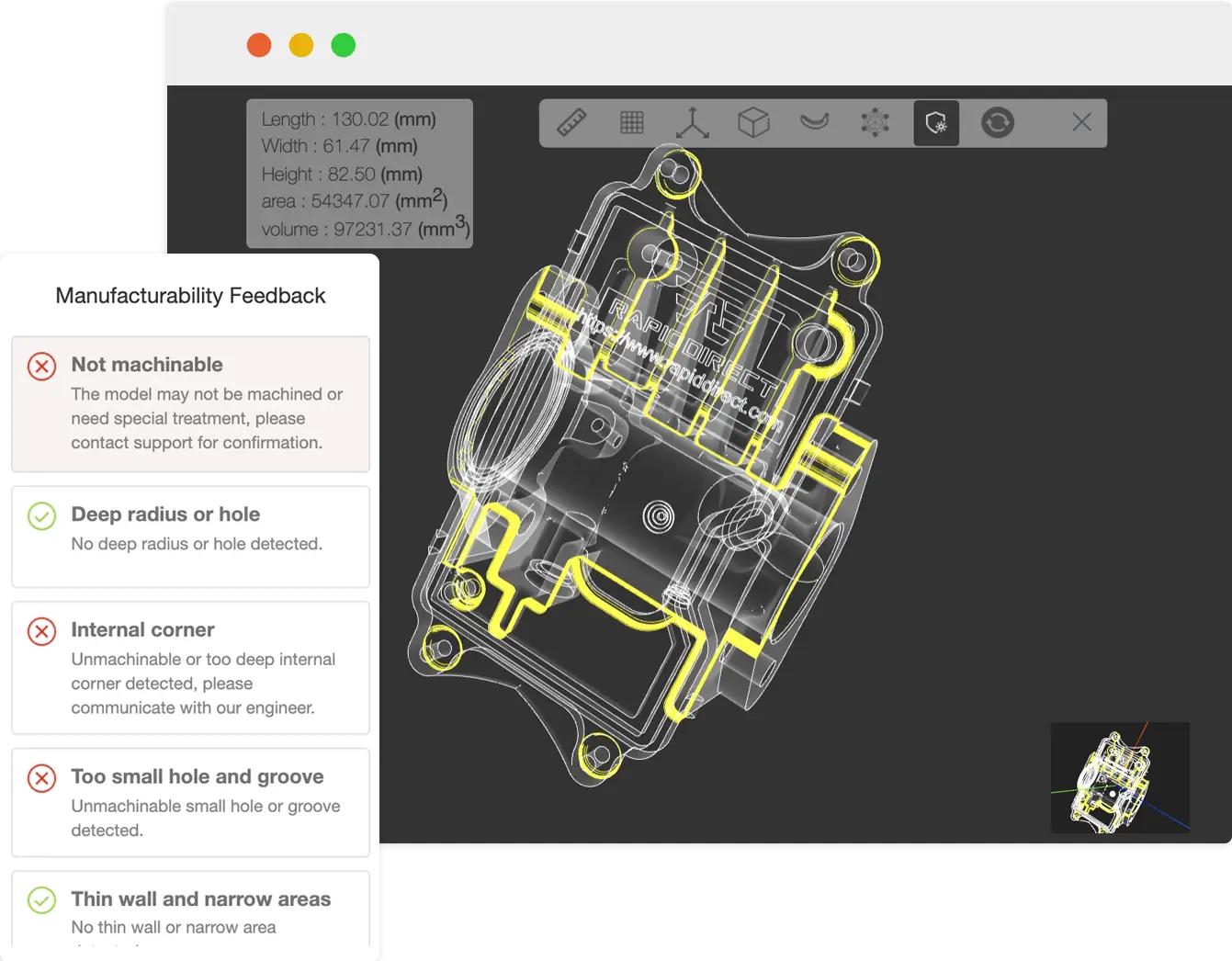

Conducted a rigorous pre-production review to ensure reliable fabrication, verifying CNC machining feasibility, tool clearance, thread accessibility, and material removal efficiency.

Finite Element Analysis (FEA)

Applied realistic operational load conditions to a high-fidelity 3D CAD model to evaluate structural behavior, identifying critical load paths and stress concentration zones.

Structural Integrity Verification

Confirmed that maximum stress remained significantly below the aluminum alloy's yield limits, guaranteeing a highly stable mechanical clamping interface.

Outcome

The complete engineering validation workflow successfully confirmed both the structural safety and manufacturing readiness of the bracket assembly. We proved the design possesses high structural stiffness with a robust 5.6 Factor of Safety. This data-driven approach reduced the client's design iterations by 50%, completely eliminated the need for costly physical prototypes, and accelerated a confident transition into final CNC production.

Analysis

Technical Breakdown

Validating Load Safety & Precision

Executing this validation required a dual-focused approach on both structural physics and modern CNC machining capabilities. We specifically targeted the bolt hole interfaces to ensure the localized stress remained well within the structural limits of the high-strength aluminum alloy.

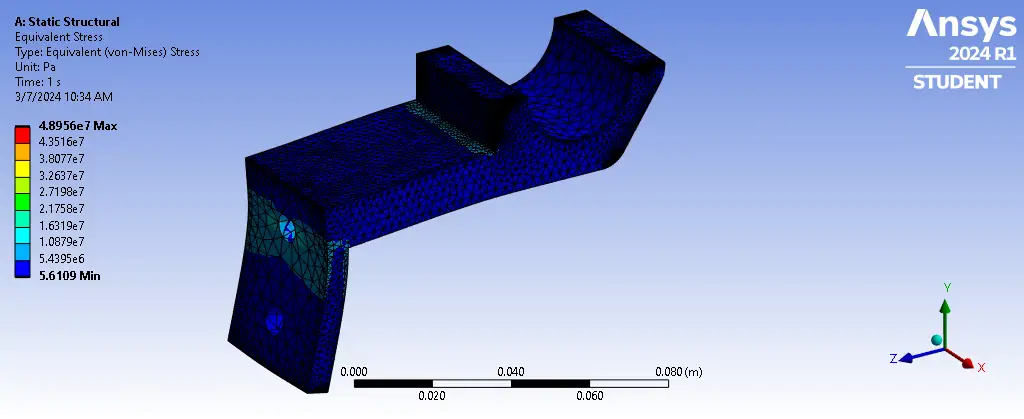

  • Validated a maximum operational stress of only 48.9 MPa, remaining vastly below the material's 275 MPa yield strength limit.

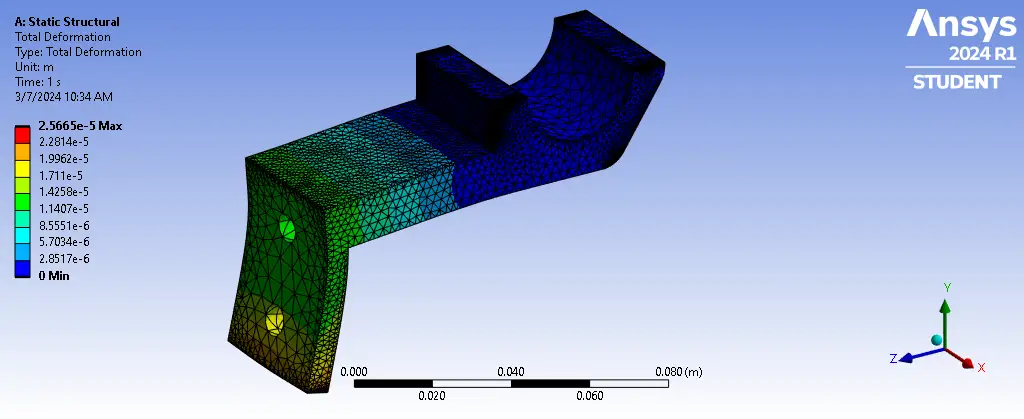

  • Recorded negligible maximum structural deformation (0.0000257 m), ensuring absolute dimensional stability under load.
  • Pinpointed the bolt hole interface as the critical location, verifying that load transfer through the mounting points remained highly stable.

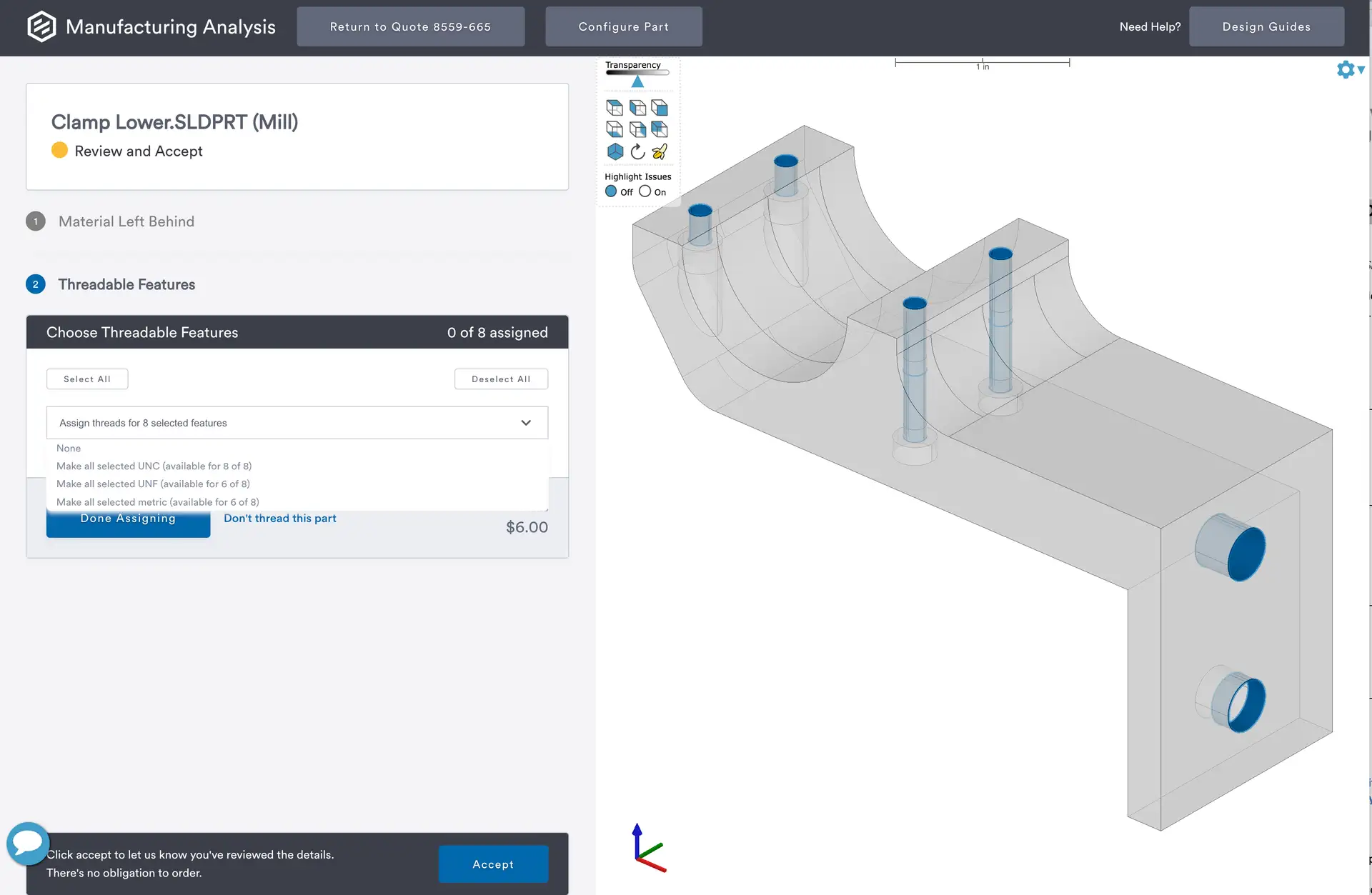

  • Confirmed production readiness by verifying 100% thread accessibility and cost-effective CNC tool clearances.

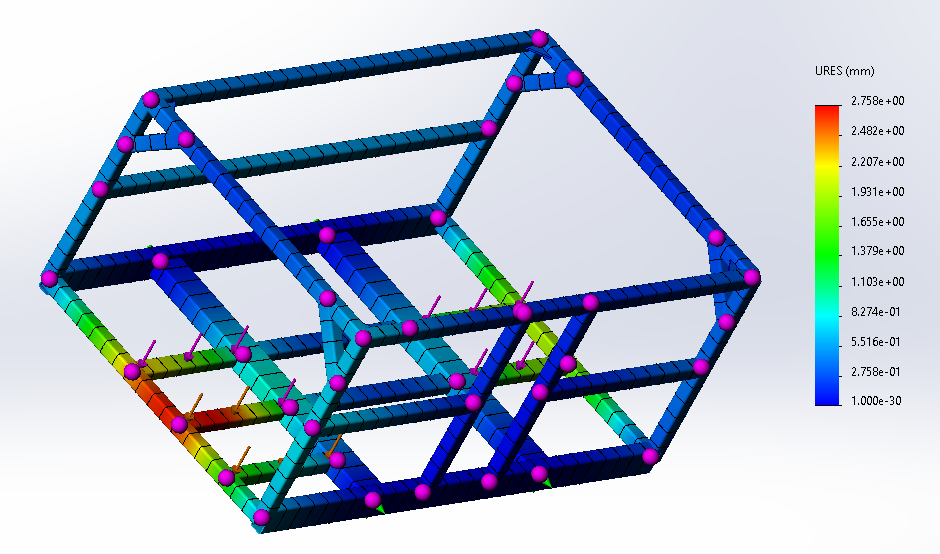

Next project preview
