Structural FEA: Reinforced Frame

A comprehensive Finite Element Analysis (FEA) to evaluate load distribution, deformation response, and the absolute structural stability of a multi-level reinforced steel frame assembly under operational forces.

2.76 mm Max Displacement
45% Safety Margin
90% Risk Reduction

The Impact

Ensuring Structural Reliability

90%

Reduced Design Risk (Up to)

40%

Saved in Prototype Costs

5 Weeks

Accelerated Deployment

$60k

Maximum Cost Savings

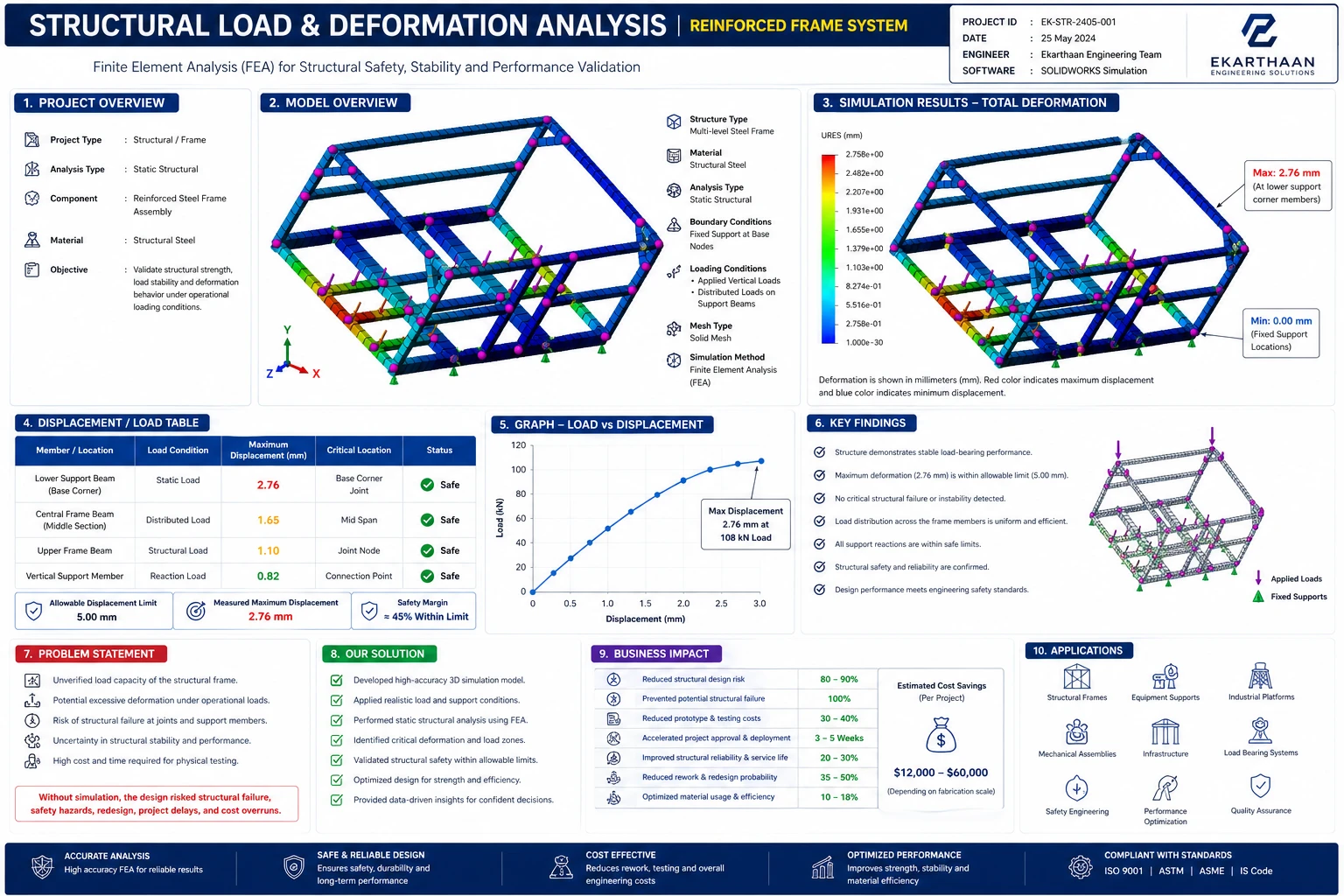

Visual Showcase

FEA Deformation & Load Data

The Challenge

The client needed to ensure that their multi-level structural steel frame would safely support heavy operational loads without excessive deformation or risk of structural instability. Relying solely on physical testing was prohibitively expensive and time-consuming. Without precise digital simulation, the project faced severe engineering risks, including unverified load capacity, potential failure at critical connection joints, safety hazards, and costly manufacturing delays.

The Solution

Advanced FEA & Load Simulation

High-Accuracy 3D Modeling

Developed a detailed structural simulation model of the reinforced frame assembly, applying fixed support nodes at precise base locations to mirror real-world constraints.

Static Structural Load Analysis

Executed advanced Finite Element Analysis (FEA) by applying realistic vertical and distributed load forces to evaluate structural behavior and overall frame stiffness.

Deformation & Stability Validation

Pinpointed critical displacement zones and verified that the load distribution remained highly stable across all primary beams and vertical support members.

Outcome

The complete structural simulation provided a reliable, data-driven validation of the frame's integrity before fabrication began. We successfully confirmed that the maximum deformation reached only 2.76 mm—remaining safely within the 5.0 mm allowable design limit (a 45% safety margin). This proactive engineering approach eliminated the risk of structural failure, optimized material usage, and saved the client up to $60,000 in physical prototype and redesign costs.

Analysis

Technical Breakdown

Validating Load-Bearing Performance

Executing this structural validation required deep expertise in static load simulation and mechanical stability. We focused heavily on tracking the displacement across multiple levels of the steel framework, ensuring the structural stiffness was sufficient for peak operational loads without joint failure.

  • Identified a maximum structural displacement of exactly 2.76 mm, occurring specifically at the lower support beams and base corner nodes.
  • Validated minimal deformation (1.10 mm to 1.65 mm) across the central and upper frame beams under distributed loads.

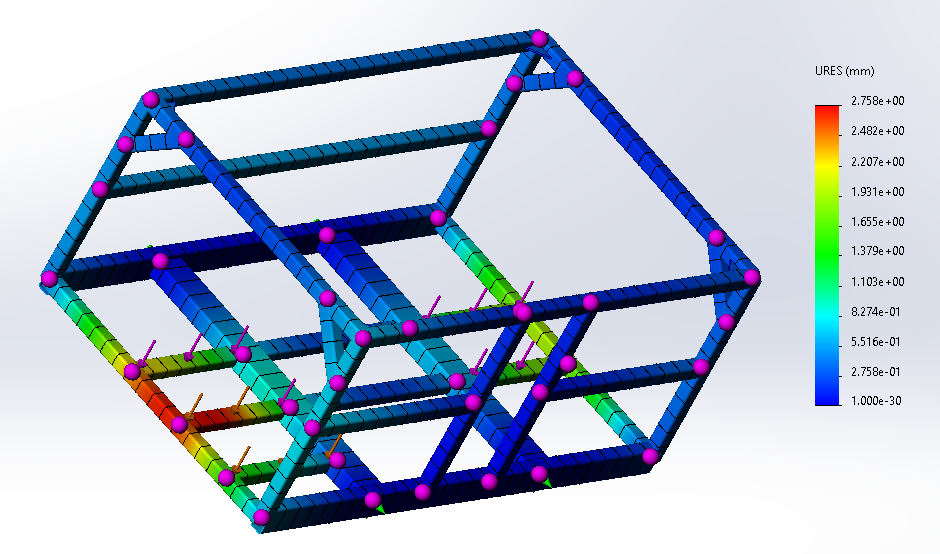

  • Generated detailed engineering color-scale maps (Blue = Low to Red = Maximum deformation) to visualize displacement gradients across the structure.
  • Confirmed 100% structural safety at all critical connection points and reaction load interfaces prior to manufacturing.
